LCD-S401M16KR - Lumex

Description: Character Display Module Reflective 7-Segment TN - Twisted Nematic Without Backlight 20.32mm x 10.16mm x 2.80mm

Download LCD-S401M16KR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

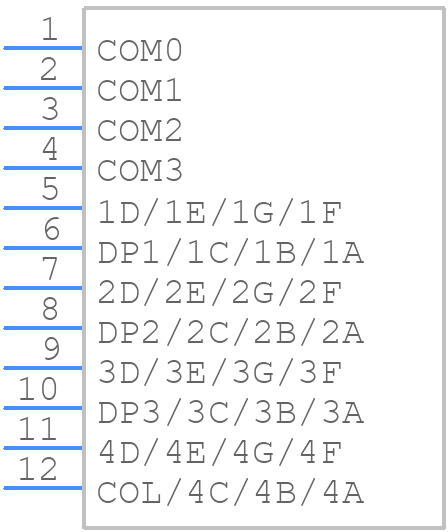

LCD-S401M16KR - Lumex - PCB symbol
click to zoom
PCB Footprints
LCD-S401M16KR - Lumex PCB footprint - Other - Other - 20.32mm x 10.16mm x 2.80mm_2026
click to zoom
3D Models
LCD-S401M16KR - Lumex - 3D model - Other - 20.32mm x 10.16mm x 2.80mm_2026
click to zoom

LCD-S401M16KR Details

  • Manufacturer Part Number:

    LCD-S401M16KR

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Manufacturer:

    ITW Lumex

  • Display Height:

    4.42 mm

  • Fluid Type:

    TN

  • Number of Functions:

    5

  • Operating Temperature-Max:

    50 °C

  • Optoelectronic Device Type:

    ANALOG/DIGITAL CLOCK LCD DISPLAY

  • Polarization Mode:

    REFLECTIVE

  • Supply Voltage-Nom:

    3 V

  • Viewing Area Height:

    5 mm

  • Viewing Area Length:

    18 mm

LCD-S401M16KR Frequently Asked Questions (FAQs)

  • The recommended operating temperature range for the LCD-S401M16KR is -20°C to 70°C.
  • The LCD-S401M16KR uses a parallel interface, with a 16-bit data bus and a separate clock signal.
  • The typical power consumption of the LCD-S401M16KR is around 200-300 μA, depending on the display mode and backlight usage.
  • The LCD-S401M16KR is designed to operate in a relative humidity range of 40% to 80%. However, it's recommended to take precautions to prevent moisture ingress and ensure proper sealing and encapsulation.
  • The brightness of the backlight on the LCD-S401M16KR can be adjusted by applying a PWM signal to the backlight control pin. The frequency and duty cycle of the PWM signal determine the brightness level.
