A good PCB layout for the LCDA05 involves keeping the input and output traces as short as possible, using a solid ground plane, and placing decoupling capacitors close to the device. It's also recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
To ensure proper biasing, make sure to connect the VCC pin to a stable 3.3V or 5V power supply, and the GND pin to a solid ground plane. Also, ensure that the input signals are within the recommended voltage range (0.5V to VCC-0.5V) and that the output loads are within the recommended current range (up to 20mA).
The LCDA05 can support data rates up to 100Mbps, making it suitable for high-speed applications such as HDMI, DisplayPort, and USB 3.0.
To troubleshoot issues with the LCDA05, use a logic analyzer or oscilloscope to monitor the input and output signals. Check for signal integrity issues such as ringing, overshoot, or undershoot, and ensure that the input signals are within the recommended voltage range. Also, verify that the device is properly biased and that the output loads are within the recommended current range.
The LCDA05 is a LVDS (Low-Voltage Differential Signaling) device, which is compatible with other LVDS devices. However, it may not be directly compatible with other logic families such as TTL or CMOS, and may require level translation or buffering to ensure proper operation.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
LCDA05 Overview

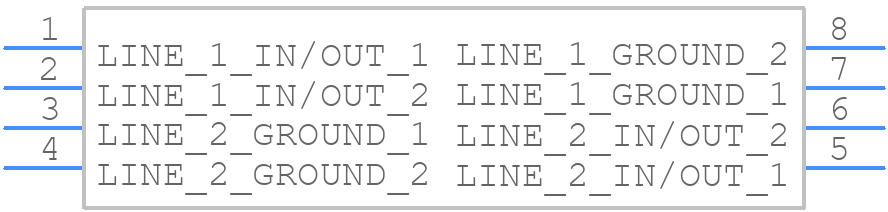

Use the download button to access the LCDA05 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LCDA0,
or try a keyword search, such as Transient Suppressors
