The recommended PCB layout for optimal performance of the LCDA12 involves keeping the input and output traces as short as possible, using a solid ground plane, and placing decoupling capacitors close to the device. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
To ensure the LCDA12 is properly biased, make sure to connect the VCC pin to a stable 3.3V or 5V power supply, and the VEE pin to a stable ground. Also, ensure that the input signals are within the recommended voltage range (0.5V to VCC-0.5V) and that the output loads are within the recommended current range (up to 24mA).
The maximum data rate that can be achieved with the LCDA12 is 100Mbps, but this can vary depending on the specific application, PCB layout, and signal quality. It's recommended to consult the datasheet and application notes for more information on achieving high-speed data transmission with the LCDA12.
To troubleshoot issues with the LCDA12, start by checking the power supply and input signals for noise and distortion. Use an oscilloscope to verify the signal integrity and check for any signs of data corruption. Also, ensure that the device is properly biased and that the output loads are within the recommended range. If issues persist, consult the datasheet and application notes for more troubleshooting guidance.
The LCDA12 is rated for operation up to 85°C, but it's recommended to consult the datasheet and application notes for more information on using the device in high-temperature applications. Additionally, it's recommended to consider the thermal management of the device and the overall system design to ensure reliable operation.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
LCDA12 Overview

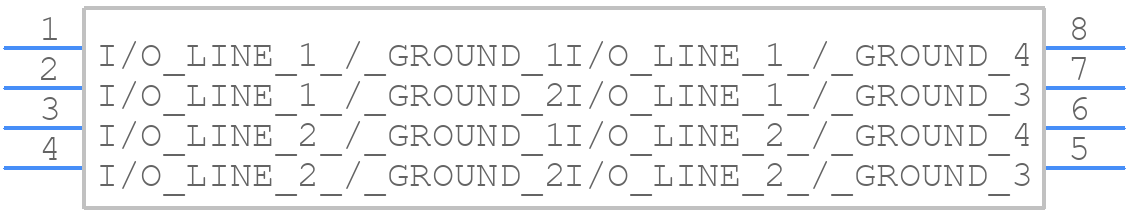

Use the download button to access the LCDA12 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LCDA1,
or try a keyword search, such as Transient Suppressors
