LCDA12C-8.TBT - SEMTECH

Description: 26.6V Clamp 20A (8/20µs) Ipp Tvs Diode Surface Mount 16-SO

Download LCDA12C-8.TBT Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

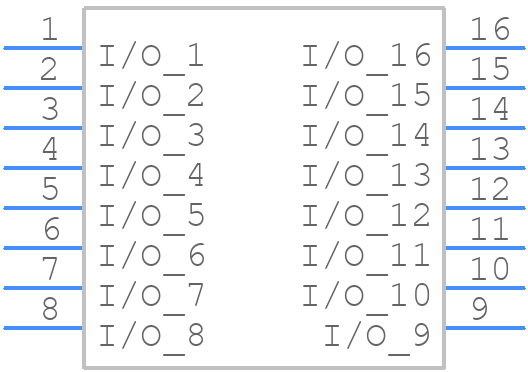

LCDA12C-8.TBT - SEMTECH - PCB symbol
click to zoom
PCB Footprints
LCDA12C-8.TBT - SEMTECH PCB footprint - Small Outline Packages - Small Outline Packages - SO-16
click to zoom
3D Models
LCDA12C-8.TBT - SEMTECH - 3D model - Small Outline Packages - SO-16
click to zoom

LCDA12C-8.TBT Details

  • Manufacturer Part Number:

    LCDA12C-8.TBT

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Not Recommended

  • Part Package Code:

    SOIC

  • Package Description:

    LEAD FREE, SOP-16

  • Pin Count:

    16

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8541.10.00.50

  • Factory Lead Time:

    4 Weeks

  • Manufacturer:

    Semtech Corporation

  • YTEOL:

    6.91

  • Breakdown Voltage-Min:

    13.3 V

  • Clamping Voltage-Max:

    26.6 V

  • Configuration:

    COMPLEX

  • Diode Element Material:

    SILICON

  • Diode Type:

    TRANS VOLTAGE SUPPRESSOR DIODE

  • JEDEC-95 Code:

    MS-012AC

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e3

  • Moisture Sensitivity Level:

    1

  • Non-rep Peak Rev Power Dis-Max:

    500 W

  • Number of Elements:

    16

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -55 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Polarity:

    UNIDIRECTIONAL

  • Qualification Status:

    Not Qualified

  • Rep Pk Reverse Voltage-Max:

    12 V

  • Surface Mount:

    YES

  • Technology:

    AVALANCHE

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

LCDA12C-8.TBT Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. The device should be placed near the center of the board, and the input and output tracks should be kept short and away from noise sources.
  • The device requires a single 3.3V power supply, and the recommended biasing is to connect VCC to 3.3V and GND to ground. The input and output pins should be terminated with 50 ohms to ensure proper impedance matching.
  • The LCDA12C-8.TBT can support data rates up to 12.5 Gbps, making it suitable for high-speed applications such as HDMI, DisplayPort, and USB 3.0.
  • Common issues include signal integrity problems, power supply noise, and improper termination. Use oscilloscopes and signal analyzers to debug the signal, and ensure proper power supply decoupling and termination.
  • Yes, the LCDA12C-8.TBT is compatible with other high-speed interfaces such as SATA, PCIe, and Ethernet. However, specific design considerations and signal conditioning may be required for optimal performance.
