LCFE080602A120TG - LITTELFUSE

Description: Common Mode Chokes / Filters 12ohms 30% 100A 2 Lines 0806

Download LCFE080602A120TG Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

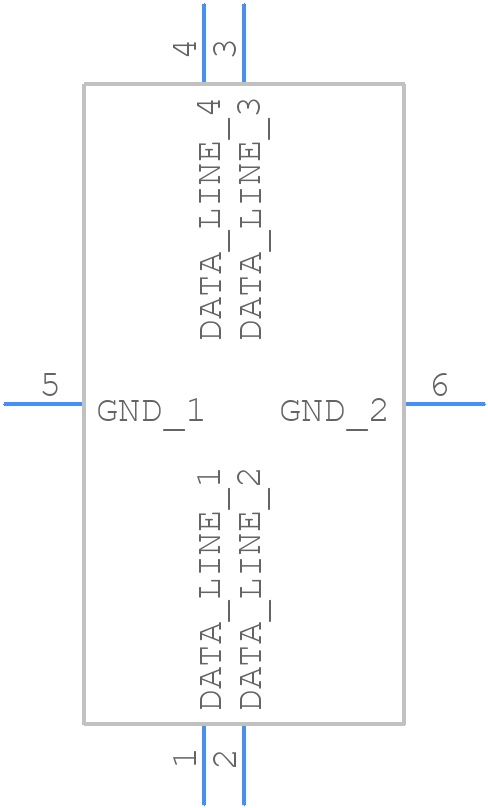

LCFE080602A120TG - LITTELFUSE - PCB symbol
click to zoom
PCB Footprints
LCFE080602A120TG - LITTELFUSE PCB footprint - Other - Other - LCFE080602A120TG-3
click to zoom
3D Models
LCFE080602A120TG - LITTELFUSE - 3D model - Other - LCFE080602A120TG-3
click to zoom

LCFE080602A120TG Details

  • Manufacturer Part Number:

    LCFE080602A120TG

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8504.50.80.00

  • Manufacturer:

    Littelfuse Inc

  • YTEOL:

    8

  • Capacitance:

    1.7 µF

  • DC Resistance-Max:

    5 Ω

  • Filter Type:

    DATA LINE FILTER

  • Height:

    0.5 mm

  • Insulation Resistance-Min:

    10 MΩ

  • Length:

    0.87 mm

  • Mounting Type:

    SURFACE MOUNT

  • Number of Functions:

    2

  • Number of Terminals:

    6

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Impedance:

    12 OHM Ω

  • Package Material:

    CERAMIC

  • Packing Method:

    TR, 7 INCH

  • Rated Current:

    0.1 A

  • Rated Voltage:

    5 V

  • Width:

    0.67 mm
