The recommended PCB footprint for LCFE080602A250TG is a rectangular pad with dimensions of 8.1mm x 6.2mm, with a thermal pad in the center. The datasheet provides a recommended land pattern, but it's always a good idea to consult with the manufacturer or a PCB design expert for specific guidance.
To ensure reliable soldering of LCFE080602A250TG, follow the recommended soldering profile, which typically includes a peak temperature of 260°C for 10-30 seconds. Use a solder with a melting point of 217°C or higher, and ensure the PCB is clean and free of oxidation. It's also important to follow proper soldering techniques and use a soldering iron with a suitable tip size.
While LCFE080602A250TG is a robust component, it's still important to consider the vibration environment in which it will be used. Littelfuse recommends following the guidelines for vibration testing outlined in IEC 60068-2-6. If the vibration environment exceeds these guidelines, additional mechanical support or component selection may be necessary.
To prevent electrostatic discharge (ESD) damage to LCFE080602A250TG, follow proper ESD handling procedures, such as wearing an ESD wrist strap or using an ESD mat. Ensure that the component is stored in an ESD-safe environment, and handle it by the edges or body to prevent direct contact with the pins.
The typical lead time for LCFE080602A250TG can vary depending on the supplier, quantity, and region. However, according to Littelfuse's website, the standard lead time is 8-12 weeks. It's always best to check with the supplier or distributor for the most up-to-date lead time information.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
LCFE080602A250TG Overview

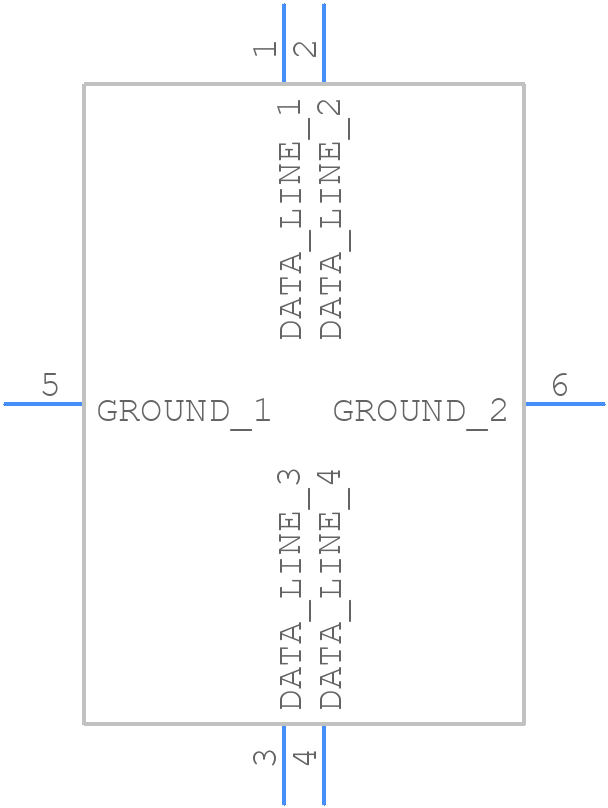

Use the download button to access the LCFE080602A250TG schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LCFE0,
or try a keyword search, such as Data Line Filters
