Part Image

LCFE080602A900TG - LITTELFUSE

Description: Common Mode Chokes / Filters 90ohms 25% 100A 2 Lines 0806

Download LCFE080602A900TG Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

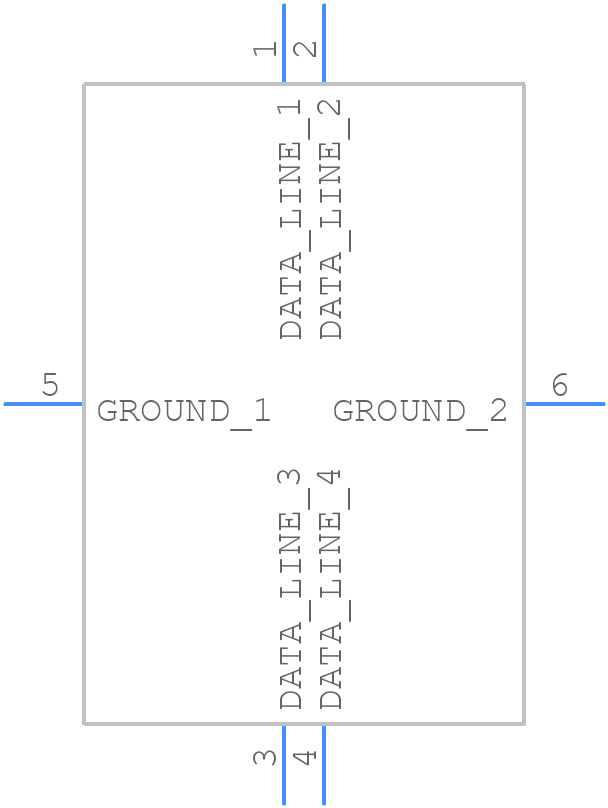

LCFE080602A900TG - LITTELFUSE - PCB symbol
click to zoom
PCB Footprints
LCFE080602A900TG - LITTELFUSE PCB footprint - Other - Other - LCFE080602A900TG-2
click to zoom
3D Models
LCFE080602A900TG - LITTELFUSE - 3D model - Other - LCFE080602A900TG-2
click to zoom

LCFE080602A900TG Details

  • Manufacturer Part Number:

    LCFE080602A900TG

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8504.50.80.00

  • Manufacturer:

    Littelfuse Inc

  • YTEOL:

    8

  • Capacitance:

    1.7 µF

  • DC Resistance-Max:

    6 Ω

  • Filter Type:

    DATA LINE FILTER

  • Height:

    0.5 mm

  • Insulation Resistance-Min:

    10 MΩ

  • Length:

    0.87 mm

  • Mounting Type:

    SURFACE MOUNT

  • Number of Functions:

    2

  • Number of Terminals:

    6

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Impedance:

    90 OHM Ω

  • Package Material:

    CERAMIC

  • Packing Method:

    TR, 7 INCH

  • Rated Current:

    0.1 A

  • Rated Voltage:

    5 V

  • Width:

    0.67 mm

LCFE080602A900TG Frequently Asked Questions (FAQs)

  • The recommended land pattern for LCFE080602A900TG is a rectangular pad with a size of 1.3 mm x 0.8 mm, with a non-solder mask defined (NSMD) pad shape.
  • To handle thermal considerations, ensure a good thermal connection to a heat sink or a thermal pad, and consider the thermal resistance of the component and the PCB.
  • The maximum operating temperature range for LCFE080602A900TG is -55°C to 150°C, with a storage temperature range of -55°C to 150°C.
  • Yes, LCFE080602A900TG is suitable for high-reliability applications, as it meets the requirements of AEC-Q200 and is manufactured with a robust design and high-quality materials.
  • To ensure reliability in a humid environment, consider using a conformal coating, and ensure the component is stored in a dry environment with a relative humidity below 60%.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LCFE080602A900TG Overview

Use the download button to access the LCFE080602A900TG schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LCFE0, or try a keyword search, such as Data Line Filters
