The recommended PCB footprint for LCFE080602G900TG is a rectangular pad with dimensions of 8.1mm x 6.2mm, with a thermal pad in the center. The datasheet provides a recommended land pattern, but it's always a good idea to consult with the manufacturer or a PCB design expert for specific guidance.
To ensure reliable soldering of LCFE080602G900TG, follow the recommended soldering profile, which typically involves a peak temperature of 260°C for 10-30 seconds. Use a solder with a melting point of 217°C or higher, and ensure the PCB is clean and free of oxidation. Avoid using excessive solder or flux, and use a soldering iron with a temperature-controlled tip.
The maximum operating temperature range for LCFE080602G900TG is -55°C to 150°C. However, the device's performance and reliability may degrade at extreme temperatures. It's essential to consult the datasheet and application notes for specific guidance on temperature-related considerations.
LCFE080602G900TG is designed to withstand moderate levels of vibration and shock. However, for high-vibration or high-shock applications, it's recommended to consult with the manufacturer or a reliability expert to determine the device's suitability. Additional mechanical support or specialized mounting may be required to ensure reliable operation.
To prevent electrostatic discharge (ESD) damage, handle LCFE080602G900TG with ESD-protective equipment, such as wrist straps, mats, or bags. Ensure the workspace is ESD-safe, and avoid touching the device's pins or leads. Follow proper ESD handling procedures, and consider using ESD-protected storage containers for the devices.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
LCFE080602G900TG Overview

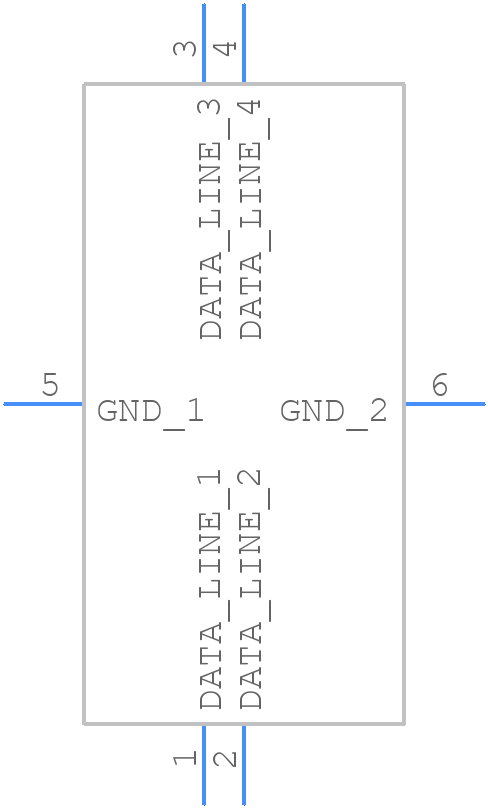

Use the download button to access the LCFE080602G900TG schematic symbol, PCB footprint, and 3D model.
