LCFE121002A350TG - LITTELFUSE

Description: 2 Line Common Mode Choke Surface Mount 35 Ohms @ 100 MHz 100mA DCR 4Ohm

Download LCFE121002A350TG Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

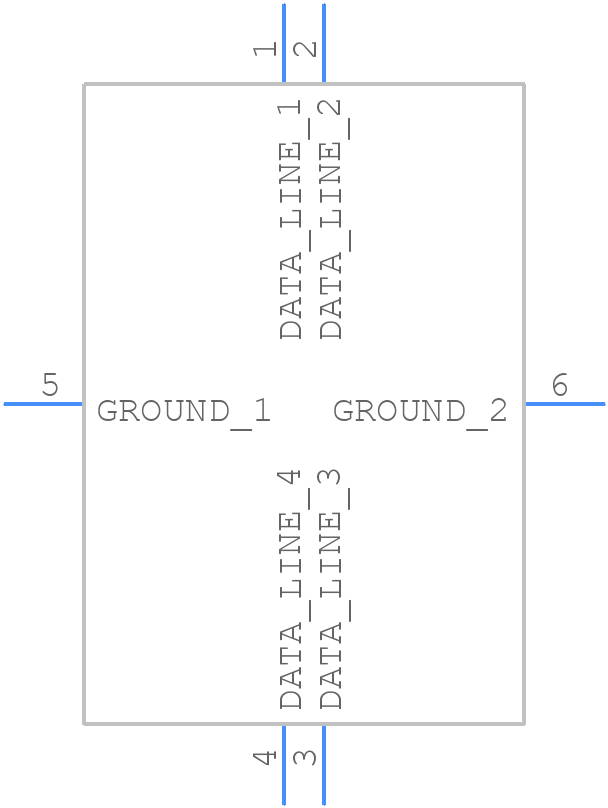

LCFE121002A350TG - LITTELFUSE - PCB symbol
click to zoom
PCB Footprints
LCFE121002A350TG - LITTELFUSE PCB footprint - Other - Other - 1210_2024
click to zoom
3D Models
LCFE121002A350TG - LITTELFUSE - 3D model - Other - 1210_2024
click to zoom

LCFE121002A350TG Details

  • Manufacturer Part Number:

    LCFE121002A350TG

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8504.50.80.00

  • Manufacturer:

    Littelfuse Inc

  • YTEOL:

    7.49

  • Capacitance:

    1.7 µF

  • DC Resistance-Max:

    4 Ω

  • Filter Type:

    DATA LINE FILTER

  • Height:

    0.6 mm

  • Insulation Resistance-Min:

    10 MΩ

  • JESD-609 Code:

    e3

  • Length:

    1.27 mm

  • Mounting Type:

    SURFACE MOUNT

  • Number of Functions:

    2

  • Number of Terminals:

    6

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Impedance:

    35 OHM Ω

  • Package Material:

    CERAMIC

  • Packing Method:

    TR, 7 INCH

  • Rated Current:

    0.1 A

  • Rated Voltage:

    5 V

  • Terminal Finish:

    Tin (Sn)

  • Width:

    1 mm

LCFE121002A350TG Frequently Asked Questions (FAQs)

  • The recommended land pattern for LCFE121002A350TG is available in the Littelfuse Inc. footprint library or can be found in the IPC-7351 standard.
  • To ensure reliability in high-temperature applications, follow the recommended derating guidelines, ensure proper thermal management, and consider using a thermally conductive interface material.
  • Yes, the LCFE121002A350TG is suitable for high-frequency applications up to 1 GHz. However, it's essential to consider the component's self-resonant frequency and impedance characteristics.
  • The maximum allowable voltage for the LCFE121002A350TG is 350V, as specified in the datasheet. Exceeding this voltage may lead to component failure.
  • Handle the LCFE121002A350TG by the body, avoid touching the leads or component termination, and use anti-static precautions to prevent electrostatic discharge damage.
