The recommended land pattern for LCFE201202A900TG is a rectangular pad with a size of 2.5mm x 1.25mm, with a solder mask clearance of 0.15mm.
Yes, LCFE201202A900TG is rated for operation up to 150°C, but it's recommended to derate the current rating by 1.5% per degree Celsius above 125°C.
For high-voltage applications, it's recommended to use a fuse with a higher voltage rating than the maximum operating voltage of the circuit. Additionally, ensure the fuse is installed with the correct polarity and orientation.
Store LCFE201202A900TG in a dry, cool place, away from direct sunlight and moisture. The recommended storage temperature range is -40°C to 30°C, and the recommended storage humidity range is 20% to 80% RH.
Yes, LCFE201202A900TG is suitable for high-frequency applications up to 1 GHz. However, it's recommended to consult the datasheet for specific impedance and insertion loss characteristics.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
LCFE201202A900TG Overview

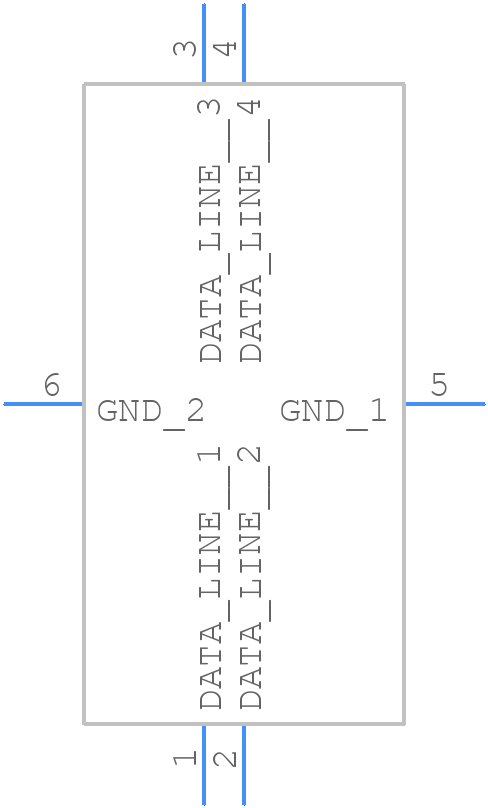

Use the download button to access the LCFE201202A900TG schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LCFE2,
or try a keyword search, such as Data Line Filters
