LCFE300806A750TG - LITTELFUSE

Description: Common Mode Chokes / Filters 75ohms 25% 100A 6 Lines 3008

Download LCFE300806A750TG Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

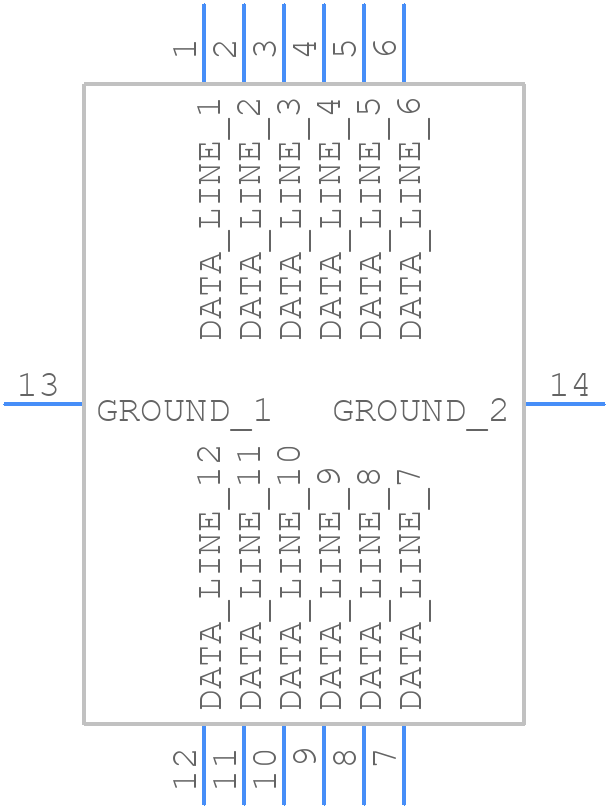

LCFE300806A750TG - LITTELFUSE - PCB symbol
click to zoom
PCB Footprints
LCFE300806A750TG - LITTELFUSE PCB footprint - Other - Other - LCFE300806A750TG-1
click to zoom
3D Models
LCFE300806A750TG - LITTELFUSE - 3D model - Other - LCFE300806A750TG-1
click to zoom

LCFE300806A750TG Details

  • Manufacturer Part Number:

    LCFE300806A750TG

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • ECCN Code:

    EAR99

  • HTS Code:

    8504.50.80.00

  • Manufacturer:

    Littelfuse Inc

  • YTEOL:

    0

  • Capacitance:

    2 µF

  • DC Resistance-Max:

    6 Ω

  • Filter Type:

    DATA LINE FILTER

  • Height:

    0.55 mm

  • Insulation Resistance-Min:

    10 MΩ

  • Length:

    3.05 mm

  • Mounting Type:

    SURFACE MOUNT

  • Number of Functions:

    6

  • Number of Terminals:

    14

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Impedance:

    75 OHM Ω

  • Package Material:

    CERAMIC

  • Packing Method:

    TR, 7 INCH

  • Rated Current:

    0.1 A

  • Rated Voltage:

    5 V

  • Width:

    0.85 mm

LCFE300806A750TG Frequently Asked Questions (FAQs)

  • The recommended PCB footprint for LCFE300806A750TG is a rectangular pad with dimensions of 3.3mm x 1.5mm, with a 0.5mm radius corner and a 0.2mm spacing between pads.
  • While LCFE300806A750TG is rated for operation up to 150°C, it's recommended to derate the current rating by 1.5% per degree Celsius above 125°C to ensure reliable operation.
  • To ensure reliable soldering, use a soldering iron with a temperature of 250°C to 260°C, and apply a soldering flux that is compatible with the component's terminations. Avoid applying excessive force or vibration during soldering.
  • Yes, LCFE300806A750TG is compatible with lead-free soldering processes, and is RoHS compliant.
  • Store LCFE300806A750TG in a dry, cool place with a temperature range of 20°C to 30°C and relative humidity below 60%. Avoid exposing the component to direct sunlight, moisture, or extreme temperatures.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LCFE300806A750TG Overview

Use the download button to access the LCFE300806A750TG schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LCFE3, or try a keyword search, such as Data Line Filters
