LCM-S01602DSF/A footprint, schematic symbol and 3D model by Lumex

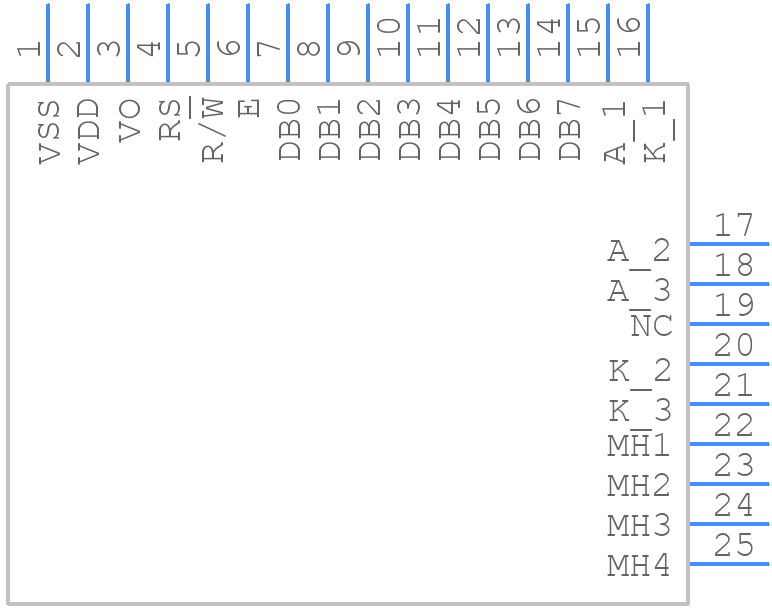

Symbol

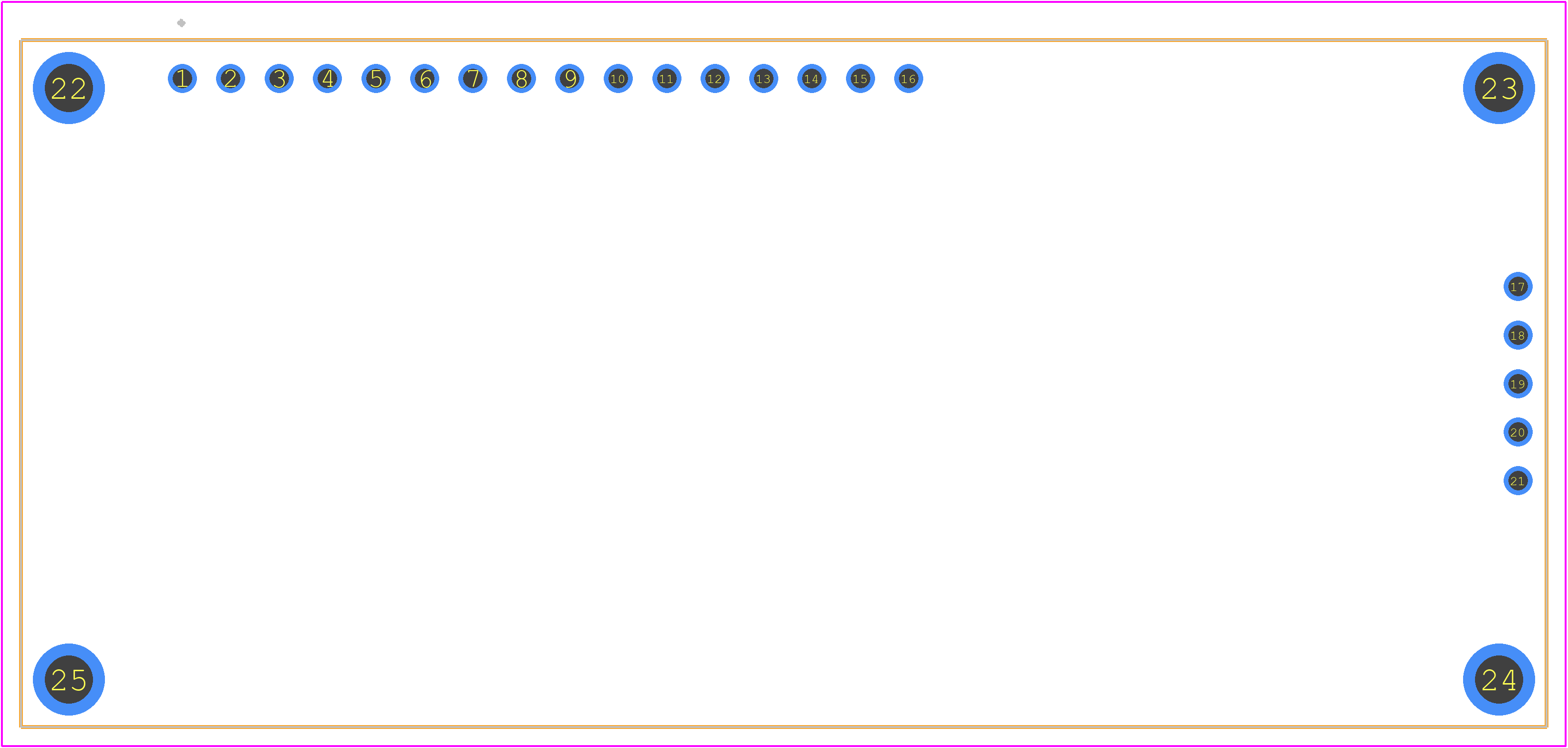

PCB Footprints

3D Models

LCM-S01602DSF/A Details

The recommended storage condition for LCM-S01602DSF/A is in a dry, cool place with a temperature range of -20°C to 30°C and humidity below 60%.
Handle the LED display by the edges, avoid touching the display area, and use an anti-static wrist strap or mat to prevent electrostatic discharge damage.
The recommended soldering temperature is 260°C (peak temperature) and the recommended soldering time is 3-5 seconds.
No, it is not recommended to use a hot air gun to rework the display as it may damage the display or the bonding wires. Instead, use a soldering iron with a fine tip and a temperature-controlled soldering station.
Use a soft, dry cloth and a mild detergent to clean the display. Avoid using harsh chemicals, abrasive materials, or high-pressure sprays that may damage the display.

Expert Contribution

System Verified

Community Approved

Use the download button to access the LCM-S01602DSF/A schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like LCM-S, or try a keyword search, such as LCD Displays
