LCM-S01602DSF/F footprint, schematic symbol and 3D model by Lumex

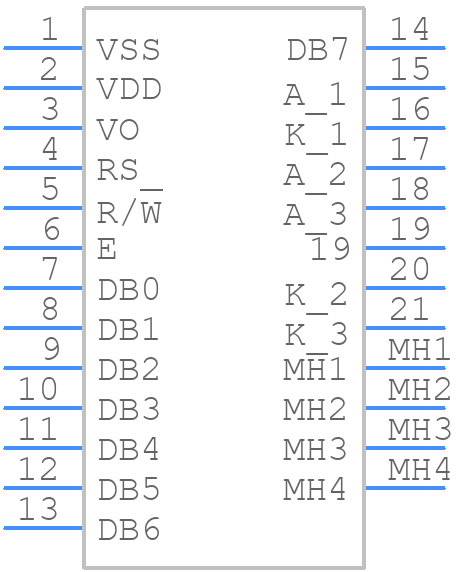

Symbol

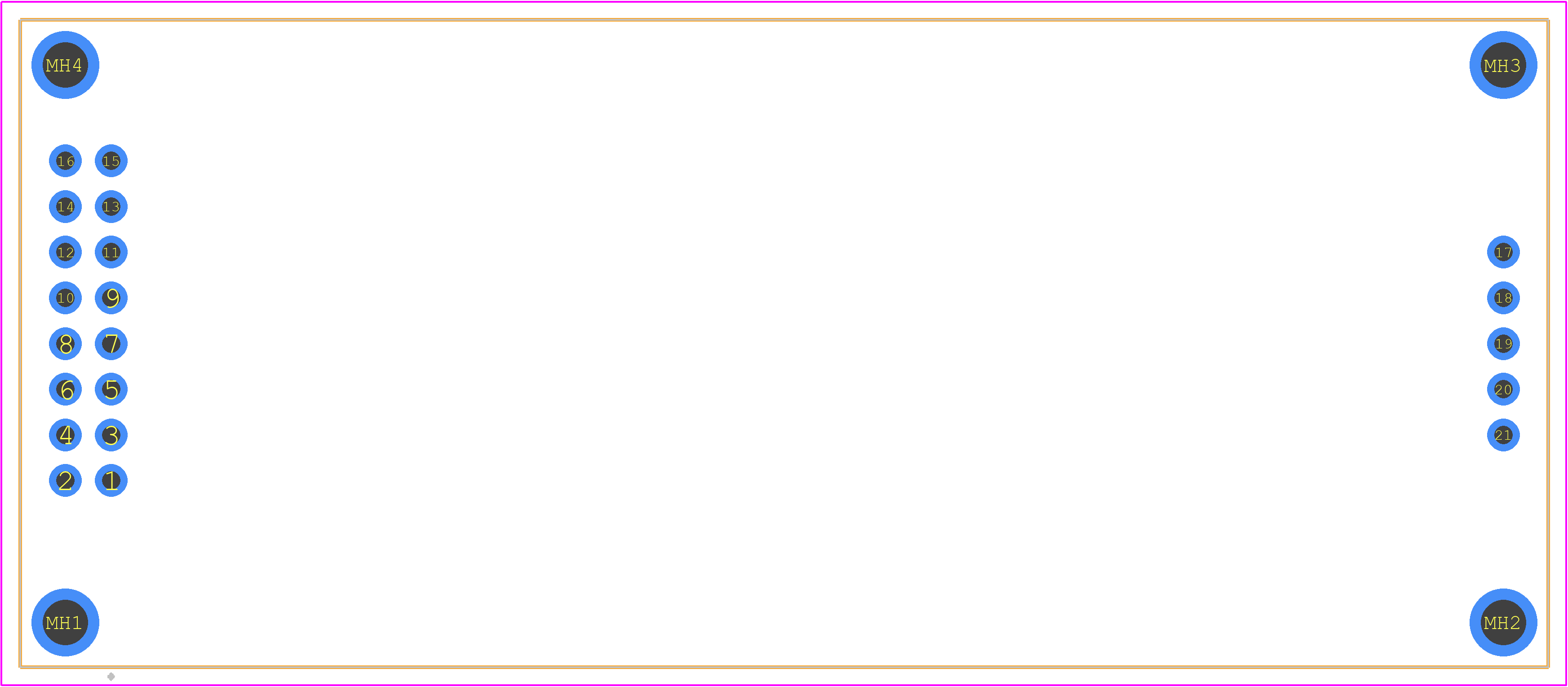

PCB Footprints

3D Models

LCM-S01602DSF/F Details

The recommended storage condition for LCM-S01602DSF/F is in a dry, cool place with a temperature range of -20°C to 40°C and humidity below 60%. Avoid exposing the device to direct sunlight, moisture, or extreme temperatures.
While LCM-S01602DSF/F is designed for indoor use, it can be used in outdoor applications with proper protection. Ensure the device is sealed in a waterproof enclosure and protected from direct sunlight, moisture, and extreme temperatures.
The typical response time of LCM-S01602DSF/F is around 10-20 ms, which is the time it takes for the display to update after receiving a new input.
No, LCM-S01602DSF/F requires a 3.3V power supply. Using a 5V power supply may damage the device or affect its performance.
The viewing angle of LCM-S01602DSF/F is typically around 60-80 degrees. To ensure optimal viewing, design the display to be viewed directly or at a slight angle. Avoid placing the display at extreme angles, as this may affect its readability.

Expert Contribution

System Verified

Community Approved

Use the download button to access the LCM-S01602DSF/F schematic symbol, PCB footprint, and 3D model.
