LCM-S01602DSR/B footprint, schematic symbol and 3D model by Lumex

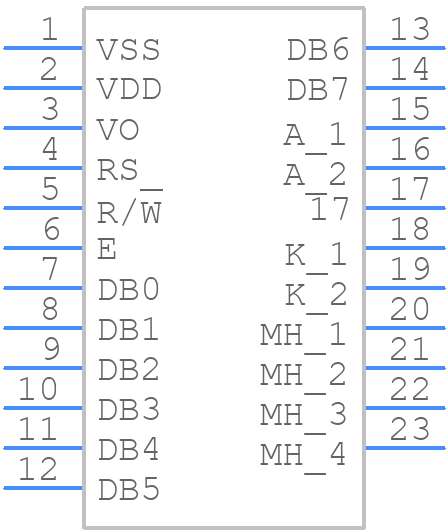

Symbol

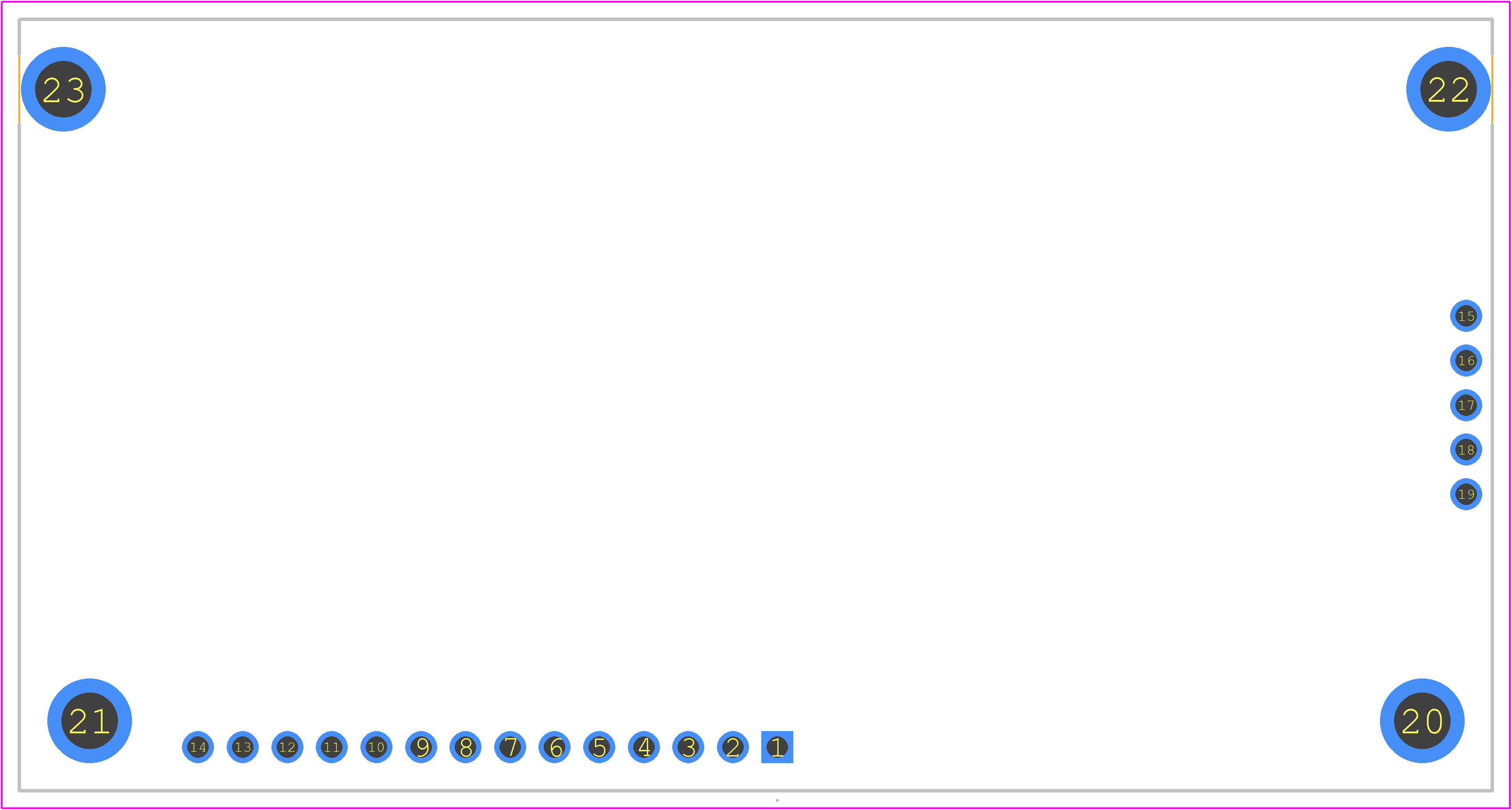

PCB Footprints

3D Models

LCM-S01602DSR/B Details

The recommended operating temperature range for the LCM-S01602DSR/B is -20°C to 70°C, with a storage temperature range of -30°C to 80°C.
The LCM-S01602DSR/B can be interfaced with a microcontroller using a 4-bit or 8-bit parallel interface. The datasheet provides detailed information on the pinout and interface protocol.
The typical power consumption of the LCM-S01602DSR/B is around 200-300 μW, depending on the operating mode and display settings.
Yes, the LCM-S01602DSR/B is designed to operate in a relative humidity range of 40% to 80%. However, it's recommended to take precautions to prevent moisture ingress and ensure proper sealing and encapsulation.
The LCM-S01602DSR/B has a built-in backlight that can be controlled using the BLK pin. The recommended backlight voltage is 4.2V, and the current consumption is around 10-20 mA.

Community Provided

System Verified

Community Approved

Use the download button to access the LCM-S01602DSR/B schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like LCM-S, or try a keyword search, such as LCD Displays
