LCM-S02004DSF footprint, schematic symbol and 3D model by Lumex

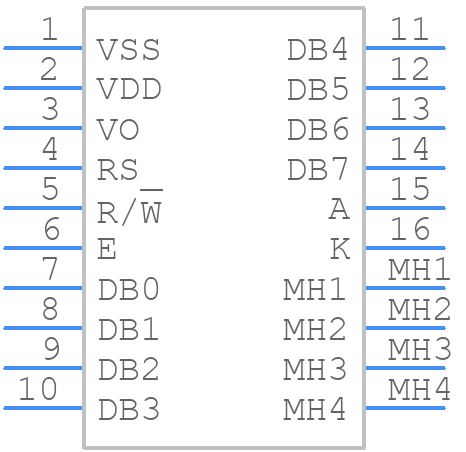

Symbol

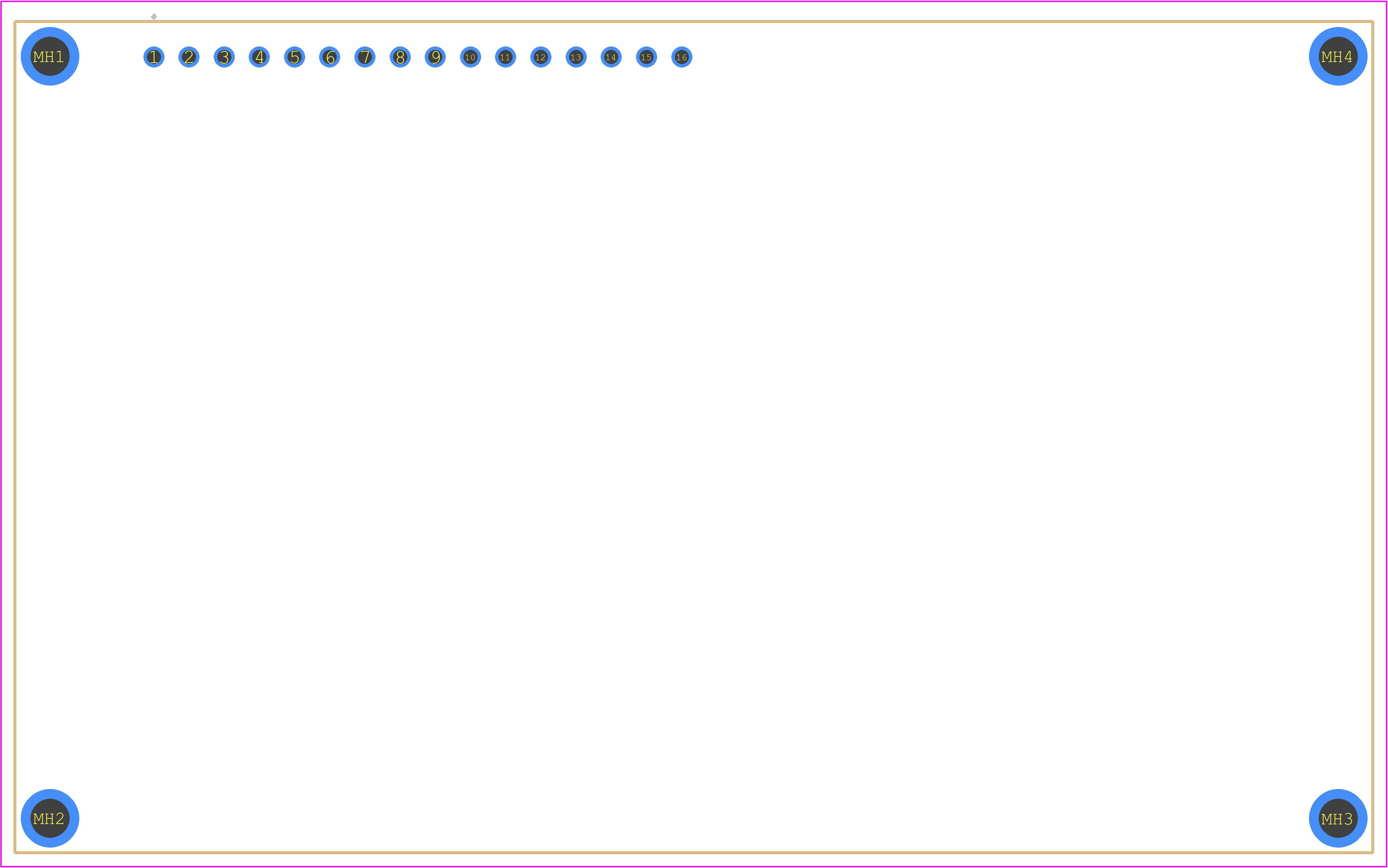

PCB Footprints

3D Models

LCM-S02004DSF Details

The recommended operating temperature range for the LCM-S02004DSF is -20°C to 70°C, with a storage temperature range of -30°C to 80°C.
The LCM-S02004DSF uses a 4-bit or 8-bit parallel interface, and it is compatible with microcontrollers such as 8051, AVR, and ARM. You can also use a serial interface with an additional serial-to-parallel converter IC.
The typical power consumption of the LCM-S02004DSF is around 3.5mA to 4.5mA, depending on the display mode and backlight usage.
The LCM-S02004DSF is designed to operate in a relative humidity range of 40% to 80%. However, it's recommended to take precautions to prevent moisture ingress, such as using a conformal coating or sealing the display module in a waterproof enclosure.
The backlight brightness of the LCM-S02004DSF can be adjusted by connecting an external resistor or potentiometer to the backlight control pin. The recommended resistance value is between 1kΩ to 10kΩ.

Expert Contribution

System Verified

Community Approved

Use the download button to access the LCM-S02004DSF schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like LCM-S, or try a keyword search, such as LCD Displays
