Part Image

LCM-S12864GSF - Lumex

Description: - Graphic LCD Display Module Transflective Gray STN - Super-Twisted Nematic Parallel, 8-Bit - 128 x 64

Download LCM-S12864GSF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

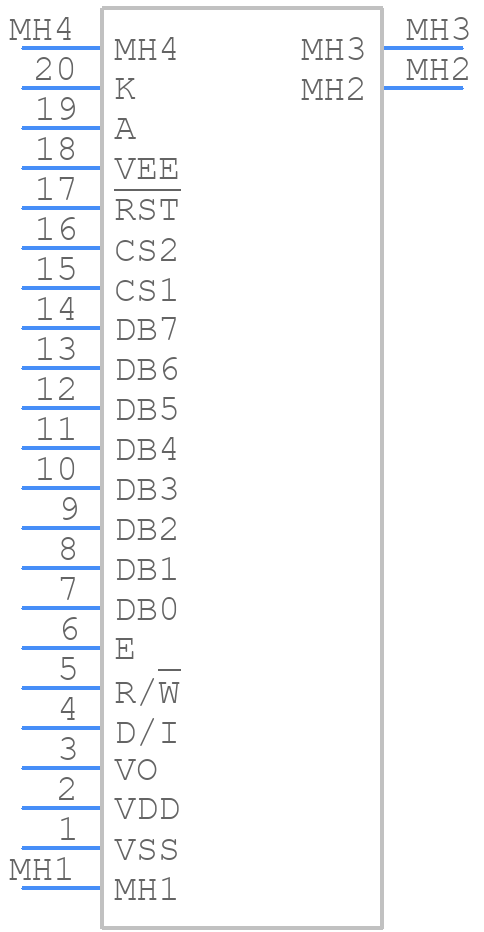

LCM-S12864GSF - Lumex - PCB symbol
click to zoom
PCB Footprints

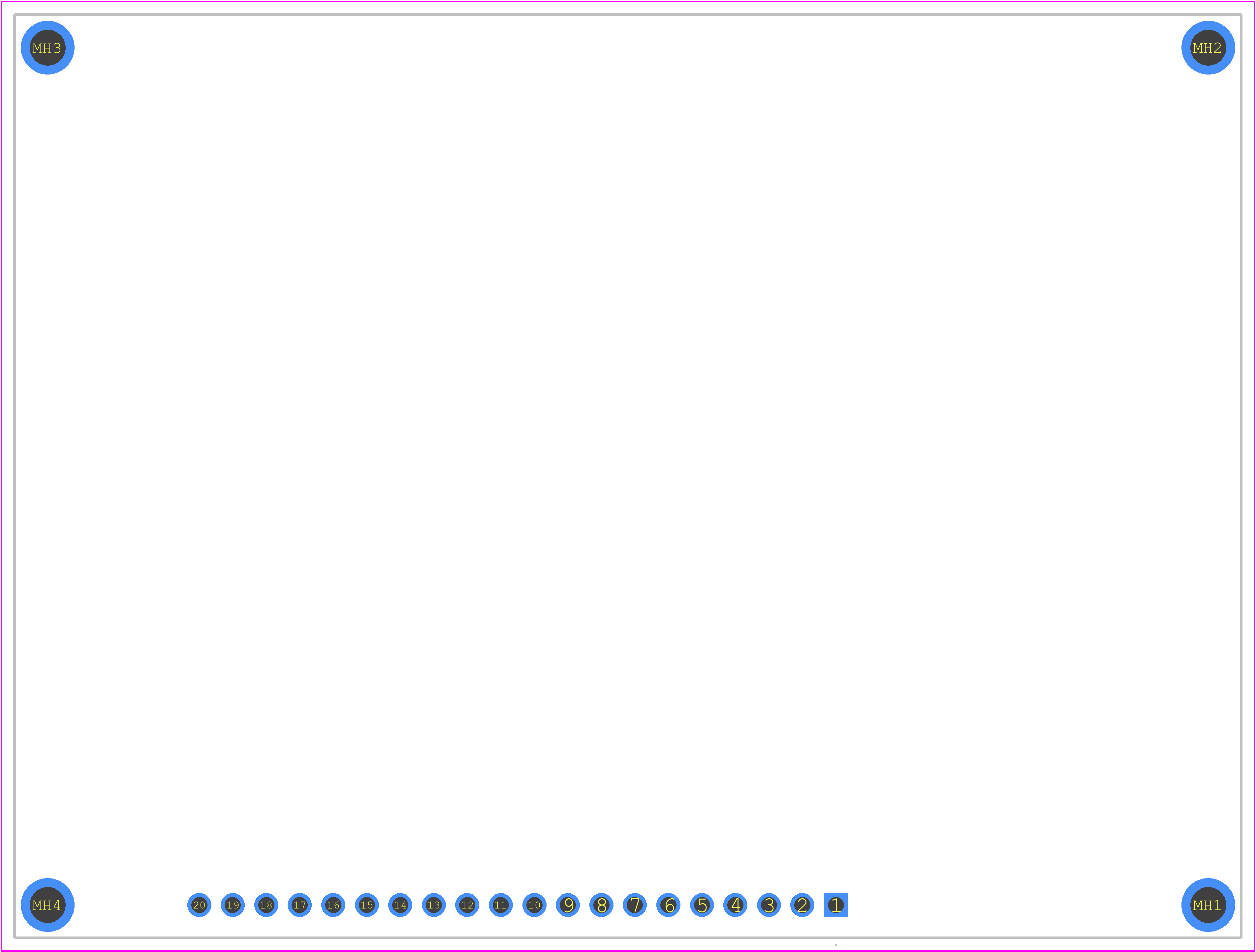

LCM-S12864GSF - Lumex PCB footprint - Other - Other - LCM-S12864GSF-4
click to zoom
3D Models
LCM-S12864GSF - Lumex - 3D model - Other - LCM-S12864GSF-4
click to zoom

LCM-S12864GSF Details

  • Manufacturer Part Number:

    LCM-S12864GSF

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Manufacturer:

    ITW Lumex

  • YTEOL:

    5

  • Backlight:

    LED

  • Display Height:

    33.24 mm

  • Number of Functions:

    1

  • Operating Temperature-Max:

    50 °C

  • Optoelectronic Device Type:

    GRAPHIC DOT MATRIX LCD DISPLAY

  • Pixel Format:

    128X64

  • Supply Voltage-Max:

    5.25 V

  • Supply Voltage-Min:

    4.75 V

  • Supply Voltage-Nom:

    5 V

  • Viewing Area Height:

    40 mm

  • Viewing Area Length:

    72 mm

LCM-S12864GSF Frequently Asked Questions (FAQs)

  • The recommended operating temperature range for the LCM-S12864GSF is -20°C to 70°C, but it can be customized to -40°C to 85°C for specific applications.
  • The LCM-S12864GSF display can be interfaced using an 8-bit or 16-bit parallel interface, or an SPI interface. The specific interface used depends on the application and the microcontroller or processor being used.
  • The typical response time for the LCM-S12864GSF display is around 10ms to 20ms, but this can vary depending on the temperature and the specific application.
  • Yes, the LCM-S12864GSF display is compatible with industrial standards such as RoHS, REACH, and CE, making it suitable for use in industrial and commercial applications.
  • Yes, the LCM-S12864GSF display can be customized for specific applications, including custom display sizes, resolutions, and interfaces. ITW Lumex also offers custom design services to meet specific customer requirements.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LCM-S12864GSF Overview

Use the download button to access the LCM-S12864GSF schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LCM-S, or try a keyword search, such as LCD Displays
