LCP02-150B1RL - STMicroelectronics

Description: Protection IC for ringing SLICs

Download LCP02-150B1RL Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

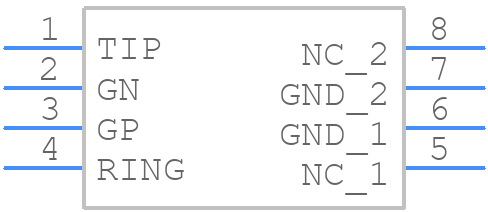

Symbol
LCP02-150B1RL - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
LCP02-150B1RL - STMicroelectronics PCB footprint - Small Outline Packages - Small Outline Packages - SO-8 wide dimension values-1
click to zoom
3D Models
LCP02-150B1RL - STMicroelectronics - 3D model - Small Outline Packages - SO-8 wide dimension values-1
click to zoom

LCP02-150B1RL Details

  • Manufacturer Part Number:

    LCP02-150B1RL

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    SOIC

  • Package Description:

    PLASTIC, SO-8

  • Pin Count:

    8

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • Factory Lead Time:

    25 Weeks

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    0

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e3

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -20 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    2.5 mm

  • Surface Mount:

    YES

  • Telecom IC Type:

    GAS DISCHARGE TUBE SUPPRESSOR

  • Temperature Grade:

    OTHER

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Width:

    5.62 mm

LCP02-150B1RL Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the input and output tracks as short as possible and use a common mode choke to reduce EMI.
  • To ensure stability, use a minimum output capacitance of 10uF, and ensure that the output voltage is within the specified range. Also, avoid using ceramic capacitors with high ESR values.
  • The maximum ambient temperature for reliable operation of LCP02-150B1RL is 85°C. However, it's recommended to derate the output current at higher temperatures to prevent overheating.
  • Yes, LCP02-150B1RL is suitable for high-reliability applications. It's manufactured using a robust process and has undergone rigorous testing to ensure its reliability.
  • Use a voltage supervisor or a reset IC to monitor the input voltage and reset the system if it falls outside the specified range. Also, consider using a TVS diode to protect against overvoltage transients.
