Power Integrations provides a recommended PCB layout in their application notes and evaluation board documentation. It's essential to follow these guidelines to ensure proper thermal management, minimize electromagnetic interference (EMI), and optimize the device's performance.
The transformer selection depends on the specific application requirements, such as output power, voltage, and frequency. Power Integrations provides a transformer selection guide in their application notes, which can help engineers choose the right transformer for their design.
The LCS703LG has a high power density, so thermal management is crucial. Engineers should ensure good airflow, use a heat sink if necessary, and follow the recommended PCB layout to minimize thermal resistance. The device's thermal pad should be connected to a solid ground plane to dissipate heat efficiently.
Power Integrations provides troubleshooting guides and application notes that can help engineers identify and resolve common issues. These resources cover topics such as oscillation prevention, stability analysis, and fault detection. Engineers can also consult with Power Integrations' technical support team for assistance.
The LCS703LG is designed to meet EMI regulations, but engineers should still take steps to minimize EMI emissions. This includes using a shielded transformer, following the recommended PCB layout, and adding EMI filters or shielding to the design as needed. Power Integrations provides EMI-related guidance in their application notes and evaluation board documentation.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
LCS703LG Overview

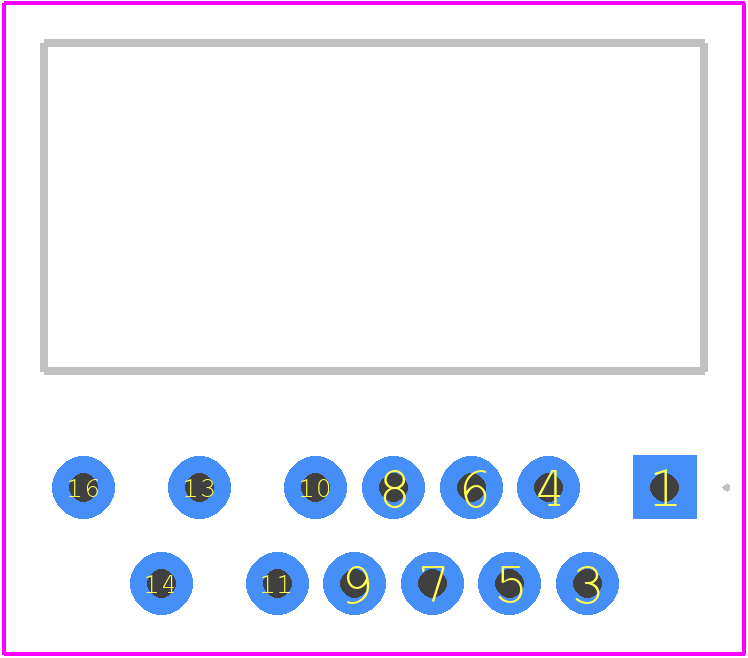

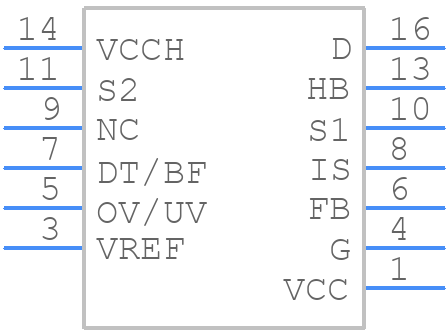

Use the download button to access the LCS703LG schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LCS70,
or try a keyword search, such as MOSFET Drivers
