LD15-23B12R2-M footprint, schematic symbol and 3D model by Mornsun Power

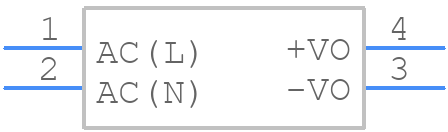

Symbol

click to zoom

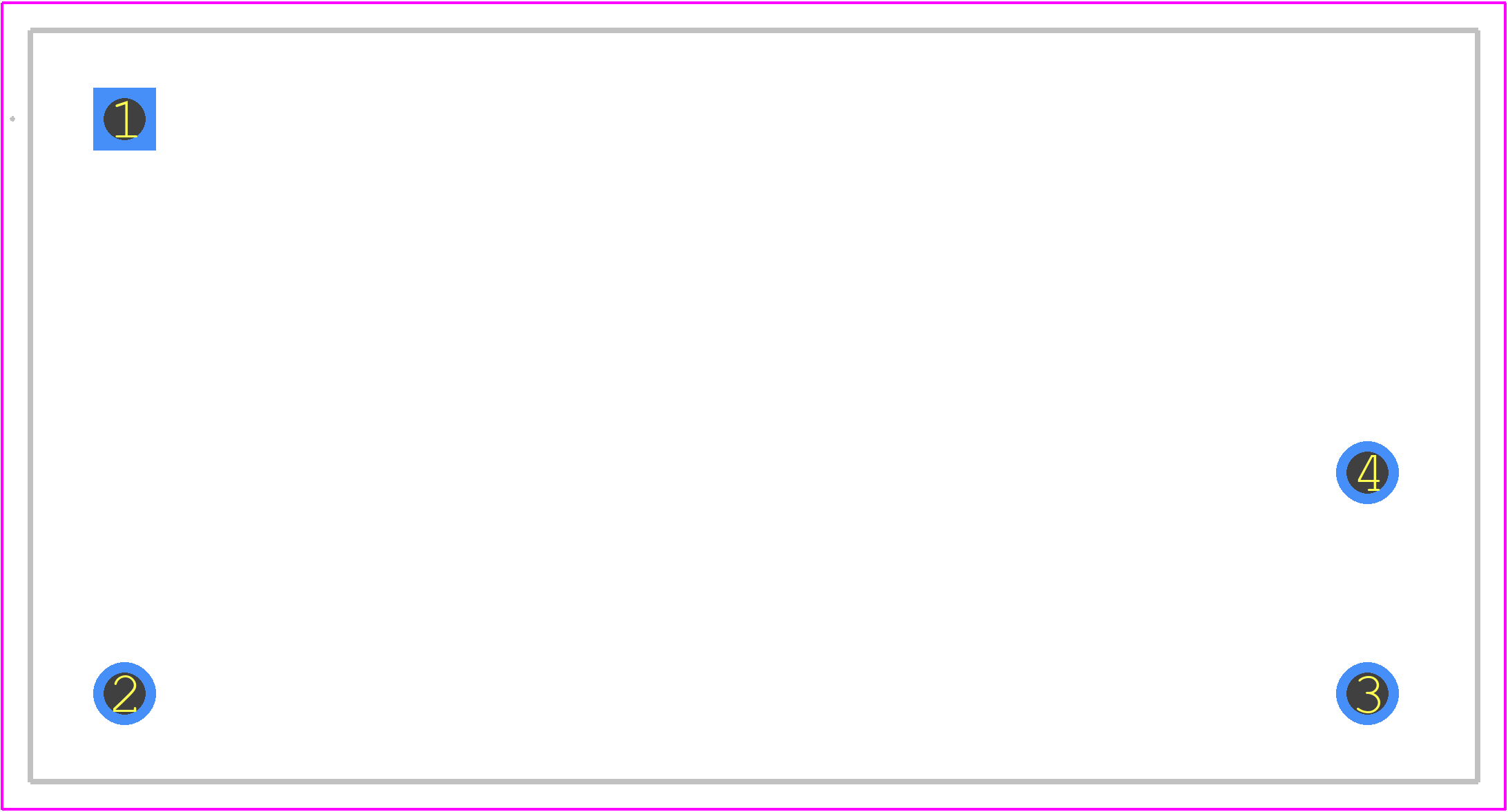

PCB Footprints

LD15-23B12R2-M - Mornsun Power PCB footprint - Other - Other - LD15-23B12R2-M-1

click to zoom

3D Models

LD15-23B12R2-M - Mornsun Power - 3D model - Other - LD15-23B12R2-M-1

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for LD15-23B12R2-M
Part Number LD15-23B12R2-M
Manufacturer Mornsun Power
Pin Count 4
Part Category Power Supply
Package Category Other
Footprint Name Other - LD15-23B12R2-M-1
Released Date May 19, 2025
Last Modified Date May 19, 2025 3:04 PM UTC
Pinout / Pin List Click Here (Member Only)

LD15-23B12R2-M Details

Manufacturer Part Number:
LD15-23B12R2-M
Rohs Code:
Yes
Part Life Cycle Code:
Active
Package Description:
PACKAGE-6/4
ECCN Code:
EAR99
Manufacturer:
MORNSUN
YTEOL:
6
Analog IC - Other Type:
AC-DC REGULATED POWER SUPPLY MODULE
Approvals:
EN; IEC; UL
Efficiency (Main Output):
86%
Input Voltage-Max:
305 V
Input Voltage-Min:
85 V
Input Voltage-Nom:
115 V
JESD-30 Code:
R-PDMA-P4
Length:
52.4 mm
Line Regulation-Max:
0.5%
Load Regulation-Max:
0.1%
Number of Functions:
1
Number of Outputs:
1
Number of Terminals:
4
Operating Temperature-Max:
85 °C
Operating Temperature-Min:
-40 °C
Output Current-Max:
1.25 A
Output Voltage-Max:
12.18 V
Output Voltage-Min:
11.82 V
Output Voltage-Nom:
12 V
Package Body Material:
PLASTIC/EPOXY
Package Code:
DMA
Package Shape:
RECTANGULAR
Package Style:
MICROELECTRONIC ASSEMBLY
Protections:
SHORT CIRCUIT; OUTPUT OVER CURRENT
Ripple Voltage (Main Out):
0.03535 Vrms
Seated Height-Max:
24.5 mm
Surface Mount:
NO
Technology:
HYBRID
Terminal Form:
PIN/PEG
Terminal Position:
DUAL
Total Power Output-Max:
15 W
Trim/Adjustable Output:
NO
Width:
27.2 mm

LD15-23B12R2-M Frequently Asked Questions (FAQs)

MORNSUN recommends a PCB layout with a large copper area connected to the tab of the device, and multiple vias to dissipate heat effectively. A minimum of 2oz copper thickness is recommended.
To ensure stable output voltage, make sure to use the recommended input and output capacitors, and keep the input voltage within the specified range. Also, ensure the device is operated within the specified temperature range.
The maximum allowable ripple current for the input capacitor is 1A RMS. Exceeding this value may reduce the lifespan of the capacitor.
Yes, the LD15-23B12R2-M is designed for high-reliability applications. However, it's essential to follow MORNSUN's recommended derating guidelines and ensure the device is operated within the specified parameters.
To troubleshoot issues, check the input voltage, output voltage, and output current. Verify that the device is operated within the specified temperature range and that the input and output capacitors are properly connected. Consult MORNSUN's application notes and technical support if issues persist.

Trust Checks

Community Provided

System Verified

Community Approved

LD15-23B12R2-M Overview

Use the download button to access the LD15-23B12R2-M schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like LD15-, or try a keyword search, such as Power Supply Modules
