LD56100DPU18R - STMicroelectronics

Description: 1 A very low dropout fast transient ultra-low noise linear regulator

Download LD56100DPU18R Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

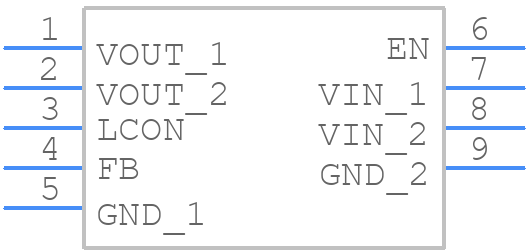

LD56100DPU18R - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
LD56100DPU18R - STMicroelectronics PCB footprint - Other - Other - LD56100DPU18R
click to zoom
3D Models
LD56100DPU18R - STMicroelectronics - 3D model - Other - LD56100DPU18R
click to zoom

LD56100DPU18R Details

  • Manufacturer Part Number:

    LD56100DPU18R

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    DFN-8

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    20 Weeks

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    0

  • Adjustability:

    FIXED

  • Dropout Voltage1-Max:

    0.285 V

  • Dropout Voltage1-Nom:

    0.2 V

  • Input Voltage Absolute-Max:

    7 V

  • Input Voltage-Max:

    5.5 V

  • Input Voltage-Min:

    2.3 V

  • JESD-30 Code:

    R-PDSO-N8

  • Length:

    1.6 mm

  • Line Regulation-Max:

    0.002916%

  • Load Regulation-Max:

    0.006%

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    8

  • Operating Temperature TJ-Max:

    125 °C

  • Operating Temperature TJ-Min:

    -40 °C

  • Output Current1-Max:

    1 A

  • Output Voltage1-Max:

    1.818 V

  • Output Voltage1-Min:

    1.764 V

  • Output Voltage1-Nom:

    1.8 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Equivalence Code:

    SOLCC8,.05,16

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Packing Method:

    TR

  • Regulator Type:

    FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR

  • Seated Height-Max:

    0.5 mm

  • Surface Mount:

    YES

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.4 mm

  • Terminal Position:

    DUAL

  • Voltage Tolerance-Max:

    2%

  • Width:

    1.2 mm

LD56100DPU18R Frequently Asked Questions (FAQs)

  • STMicroelectronics provides a recommended PCB layout in the application note AN4923, which includes guidelines for thermal vias, copper pours, and component placement to minimize thermal resistance and ensure reliable operation.
  • The input capacitor selection depends on the input voltage, output voltage, and output current. A general guideline is to choose a capacitor with a voltage rating at least 1.5 times the input voltage, and a capacitance value between 10uF to 22uF. Consult the application note AN4923 for more detailed guidance.
  • The maximum allowed voltage drop across the LD56100DPU18R is 1.5V. Exceeding this voltage drop may affect the device's reliability and performance. Ensure that the input voltage is within the recommended range to maintain a safe voltage drop.
  • The LD56100DPU18R is rated for operation up to 150°C. However, the device's performance and reliability may degrade at high temperatures. Consult the datasheet and application notes for guidance on thermal derating and heat management.
  • To ensure EMC, follow the guidelines in the application note AN4923, which includes recommendations for PCB layout, component selection, and shielding. Additionally, consider using a common-mode choke and a Y-capacitor to filter out electromagnetic interference.
