LD56100DPU25R - STMicroelectronics

Description: 1 A very low dropout fast transient ultra-low noise linear regulator

Download LD56100DPU25R Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

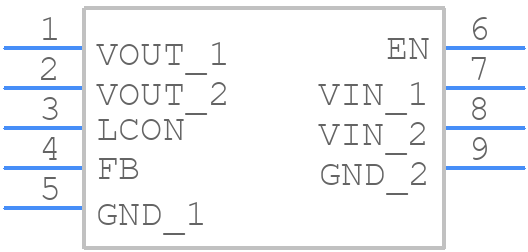

LD56100DPU25R - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
LD56100DPU25R - STMicroelectronics PCB footprint - Other - Other - DFN8 1.2x1.6 mm
click to zoom
3D Models
LD56100DPU25R - STMicroelectronics - 3D model - Other - DFN8 1.2x1.6 mm
click to zoom

LD56100DPU25R Details

  • Manufacturer Part Number:

    LD56100DPU25R

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    DFN-8

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    20 Weeks

  • Date Of Intro:

    2020-06-23

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    0

  • Adjustability:

    FIXED

  • Dropout Voltage1-Max:

    0.19 V

  • Dropout Voltage1-Nom:

    0.14 V

  • Input Voltage Absolute-Max:

    7 V

  • Input Voltage-Max:

    5.5 V

  • Input Voltage-Min:

    3 V

  • JESD-30 Code:

    R-PDSO-N8

  • JESD-609 Code:

    e4

  • Length:

    1.6 mm

  • Line Regulation-Max:

    0.003%

  • Load Regulation-Max:

    0.006%

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    8

  • Operating Temperature TJ-Max:

    125 °C

  • Operating Temperature TJ-Min:

    -40 °C

  • Output Current1-Max:

    1 A

  • Output Voltage1-Max:

    2.525 V

  • Output Voltage1-Min:

    2.45 V

  • Output Voltage1-Nom:

    2.5 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Equivalence Code:

    SOLCC8,.05,16

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Packing Method:

    TR

  • Peak Reflow Temperature (Cel):

    260

  • Regulator Type:

    FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR

  • Seated Height-Max:

    0.5 mm

  • Surface Mount:

    YES

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.4 mm

  • Terminal Position:

    DUAL

  • Voltage Tolerance-Max:

    2%

  • Width:

    1.2 mm

LD56100DPU25R Frequently Asked Questions (FAQs)

  • STMicroelectronics provides a recommended PCB layout in the application note AN5176, which includes guidelines for thermal vias, copper pours, and component placement to minimize thermal resistance and ensure reliable operation.
  • The input capacitor selection depends on the input voltage, output voltage, and output current. A general guideline is to choose a capacitor with a voltage rating of at least 1.5 times the input voltage, and a capacitance value between 10uF to 100uF. Consult the application note AN5176 for more detailed guidance.
  • The maximum allowed voltage drop across the LD56100DPU25R is 1.5V. Exceeding this voltage drop may lead to reduced efficiency, increased heat generation, and potentially damage the device.
  • The LD56100DPU25R is rated for operation up to 150°C junction temperature. However, the device's performance and reliability may degrade at high temperatures. It's essential to ensure proper thermal management and consider derating the device's output current and voltage according to the temperature derating curves provided in the datasheet.
  • Start by verifying the input voltage, output voltage, and output current are within the specified ranges. Check the PCB layout for thermal vias, copper pours, and component placement. Ensure the input capacitor is properly selected and sized. Consult the application note AN5176 and the datasheet for troubleshooting guidelines and fault detection methods.
