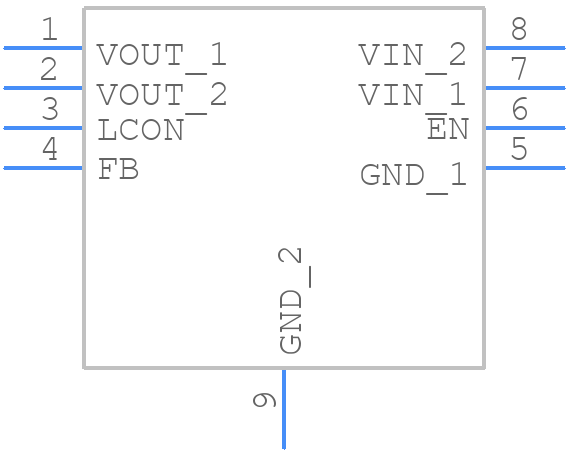

LD56100DPU30R - STMicroelectronics

LD56100DPU30R Details

• Manufacturer Part Number:

  LD56100DPU30R

• Brand Name:

  STMicroelectronics

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Obsolete

• Package Description:

  DFN-8

• Country Of Origin:

  Mainland China

• ECCN Code:

  EAR99

• HTS Code:

  8542.39.00.60

• Factory Lead Time:

  20 Weeks

• Manufacturer:

  STMicroelectronics

• YTEOL:

  0

• Adjustability:

  FIXED

• Dropout Voltage1-Max:

  0.165 V

• Dropout Voltage1-Nom:

  0.125 V

• Input Voltage Absolute-Max:

  7 V

• Input Voltage-Max:

  5.5 V

• Input Voltage-Min:

  3.5 V

• JESD-30 Code:

  R-PDSO-N8

• JESD-609 Code:

  e4

• Length:

  1.6 mm

• Line Regulation-Max:

  0.0027%

• Load Regulation-Max:

  0.006%

• Moisture Sensitivity Level:

  1

• Number of Functions:

  1

• Number of Outputs:

  1

• Number of Terminals:

  8

• Operating Temperature TJ-Max:

  125 °C

• Operating Temperature TJ-Min:

  -40 °C

• Output Current1-Max:

  1 A

• Output Voltage1-Max:

  3.03 V

• Output Voltage1-Min:

  2.94 V

• Output Voltage1-Nom:

  3 V

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  HVSON

• Package Equivalence Code:

  SOLCC8,.05,16

• Package Shape:

  RECTANGULAR

• Package Style:

  SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

• Packing Method:

  TR

• Peak Reflow Temperature (Cel):

  260

• Regulator Type:

  FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR

• Seated Height-Max:

  0.5 mm

• Surface Mount:

  YES

• Terminal Finish:

  Nickel/Palladium/Gold (Ni/Pd/Au)

• Terminal Form:

  NO LEAD

• Terminal Pitch:

  0.4 mm

• Terminal Position:

  DUAL

• Voltage Tolerance-Max:

  2%

• Width:

  1.2 mm
