LD59015C18R - STMicroelectronics

Description: STMICROELECTRONICS - LD59015C18R - LDO, FIXED, 1.8V, 0.15A, -40 TO 125DEG C

Download LD59015C18R Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

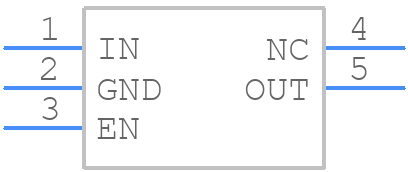

Symbol
LD59015C18R - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
LD59015C18R - STMicroelectronics PCB footprint - SOT23 (5-Pin) - SOT23 (5-Pin) - LD59015C18R
click to zoom
3D Models
LD59015C18R - STMicroelectronics - 3D model - SOT23 (5-Pin) - LD59015C18R
click to zoom

LD59015C18R Details

  • Manufacturer Part Number:

    LD59015C18R

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    SC-70

  • Package Description:

    SOT-323, 5 PIN

  • Pin Count:

    5

  • Manufacturer Package Code:

    SOT323

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    20 Weeks

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    0

  • Adjustability:

    FIXED

  • Dropout Voltage1-Max:

    0.21 V

  • Dropout Voltage1-Nom:

    0.15 V

  • Input Voltage Absolute-Max:

    7 V

  • Input Voltage-Max:

    5.5 V

  • Input Voltage-Min:

    2.3 V

  • JESD-30 Code:

    R-PDSO-G5

  • JESD-609 Code:

    e4

  • Length:

    2 mm

  • Load Regulation-Max(%):

    0.002682%

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    5

  • Operating Temperature TJ-Max:

    125 °C

  • Operating Temperature TJ-Min:

    -40 °C

  • Output Current1-Max:

    0.15 A

  • Output Voltage1-Max:

    1.8324 V

  • Output Voltage1-Min:

    1.7676 V

  • Output Voltage1-Nom:

    1.8 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP5/6,.08

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Packing Method:

    TR

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Regulator Type:

    FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR

  • Seated Height-Max:

    1.1 mm

  • Surface Mount:

    YES

  • Technology:

    BICMOS

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Voltage Tolerance-Max:

    1.8%

  • Width:

    1.25 mm

LD59015C18R Frequently Asked Questions (FAQs)

  • STMicroelectronics provides a recommended PCB layout in the application note AN5093, which includes guidelines for thermal vias, copper pours, and component placement to minimize thermal resistance and ensure reliable operation.
  • The input capacitor selection depends on the input voltage, output voltage, and desired ripple current. A general guideline is to choose a capacitor with a capacitance value between 10uF to 22uF, and a voltage rating at least 1.5 times the maximum input voltage. Consult the datasheet and application notes for more specific guidance.
  • The maximum allowed voltage drop across the LD59015C18R is typically around 1.5V to 2V, depending on the specific application and operating conditions. Exceeding this voltage drop may lead to reduced efficiency, increased heat generation, or even device failure.
  • The LD59015C18R is rated for operation up to 150°C, but it's essential to consider the derating curves and thermal management strategies to ensure reliable operation. Consult the datasheet and application notes for guidance on high-temperature operation.
  • Start by checking the input voltage, output voltage, and current. Verify that the PCB layout and component selection meet the recommended guidelines. Use thermal imaging or temperature measurement tools to identify hotspots. Consult the datasheet, application notes, and STMicroelectronics' support resources for further troubleshooting guidance.
