- Datasheet Download Datasheet
- Stock & Prices $ Price & Stock for LD7522PN
- Part Number LD7522PN
- Manufacturer Leadtrend
- Pin Count 8
- Part Category Integrated Circuit
- Package Category Dual-In-Line Packages
- Footprint Name Dual-In-Line Packages - DIP-8-1
- Released Date Sep 3, 2021
- Last Modified Date Dec 12, 2023 6:26 AM UTC
- Pinout / Pin List Click Here (Member Only)
LD7522PN Details
-
Manufacturer Part Number:
LD7522PN
-
Part Life Cycle Code:
Contact Manufacturer
-
ECCN Code:
EAR99
-
HTS Code:
8542.39.00.60
-
Manufacturer:
Leadtrend Technology Corp
Trust Checks
Community Provided
System Verified
Community Approved
LD7522PN Overview

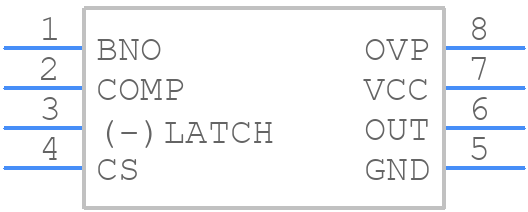

Use the download button to access the LD7522PN schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LD752,
or try a keyword search, such as Switching Regulator or Controllers
