LDD-1000HS - Mean Well

Description: LED Power Supplies 9-56V 2-52Vout1000mA LED Driver SMT style

Download LDD-1000HS Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

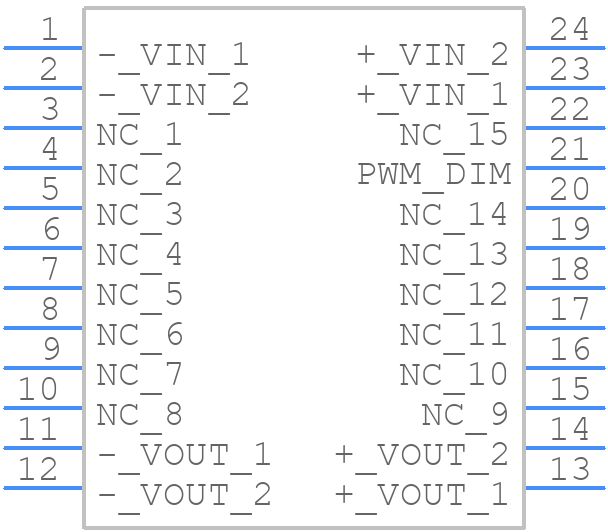

LDD-1000HS - Mean Well - PCB symbol
click to zoom
PCB Footprints

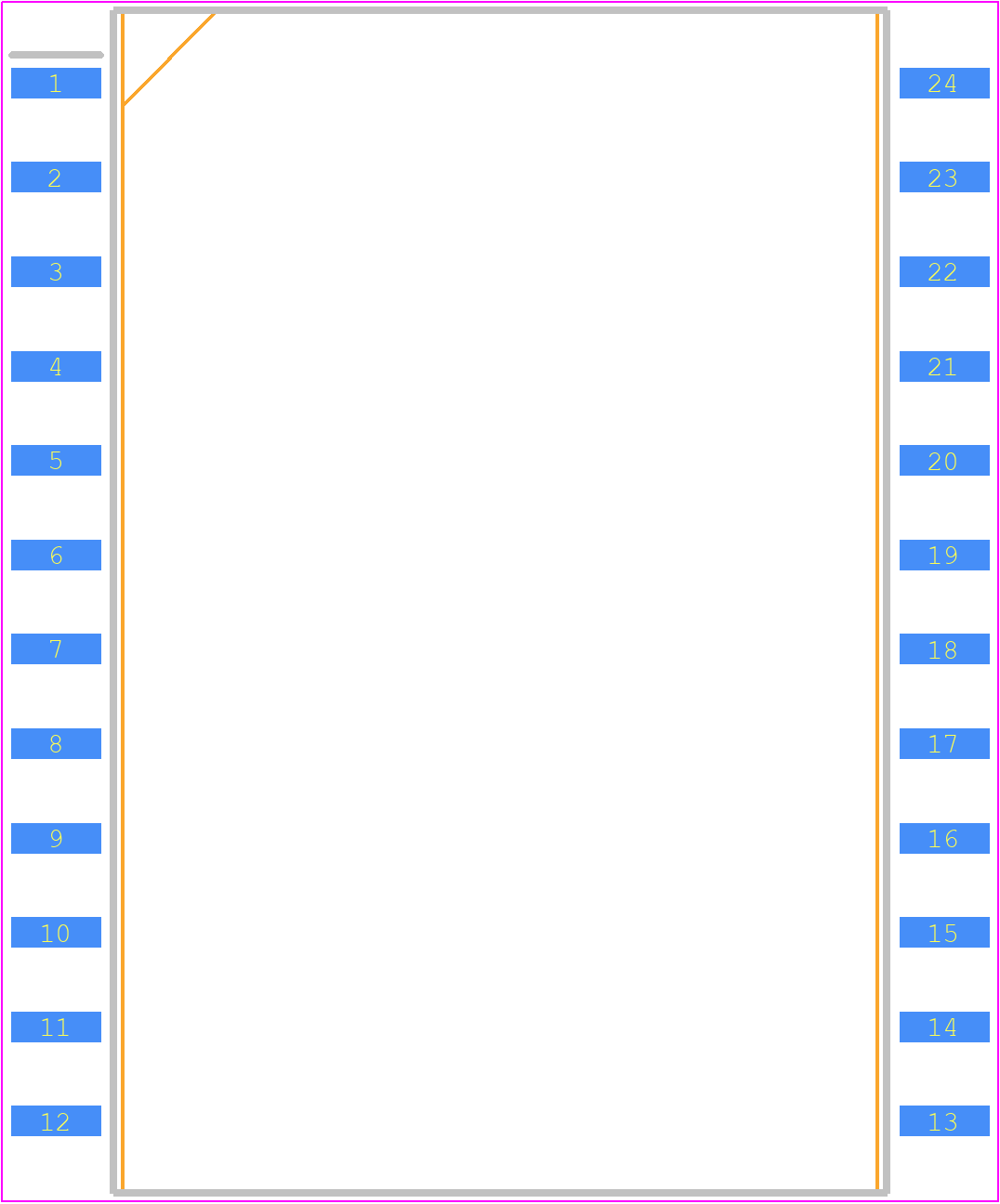

LDD-1000HS - Mean Well PCB footprint - Small Outline Packages - Small Outline Packages - LDD-1000HS
click to zoom
3D Models
LDD-1000HS - Mean Well - 3D model - Small Outline Packages - LDD-1000HS
click to zoom

LDD-1000HS Details

  • Manufacturer Part Number:

    LDD-1000HS

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    SMD-24/9

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    19 Weeks, 3 Days

  • Manufacturer:

    Mean Well

  • YTEOL:

    0

  • Interface IC Type:

    LED DISPLAY DRIVER

  • JESD-30 Code:

    R-PDSO-G9

  • Length:

    31.8 mm

  • Multiplexed Display Capability:

    NO

  • Number of Functions:

    1

  • Number of Terminals:

    9

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    240

  • Seated Height-Max:

    11.4 mm

  • Supply Voltage-Max:

    56 V

  • Supply Voltage-Min:

    9 V

  • Supply Voltage-Nom:

    48 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    2.54 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    10

  • Width:

    20.3 mm

LDD-1000HS Frequently Asked Questions (FAQs)

  • The maximum cable length for the output connectors is 1.5 meters. Longer cables may cause voltage drops and affect the performance of the LED driver.
  • No, the LDD-1000HS is not designed for use in hazardous locations. It is only certified for general-purpose applications.
  • The minimum load requirement for the LDD-1000HS is 10% of the maximum output current. Operating the driver below this minimum load may affect its performance and lifespan.
  • No, the LDD-1000HS is not designed for parallel operation. Connecting multiple units in parallel may cause instability and affect the performance of the drivers.
  • The LDD-1000HS has a surge immunity of 2kV per IEC 61000-4-5. This means it can withstand voltage surges up to 2kV without damage.
