LDD-1050H-DA footprint, schematic symbol and 3D model by Mean Well

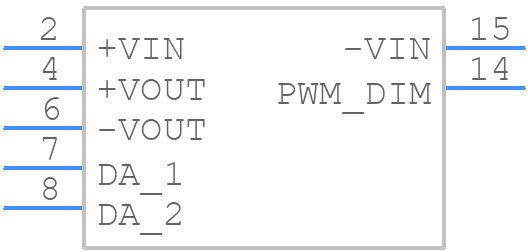

Symbol

click to zoom

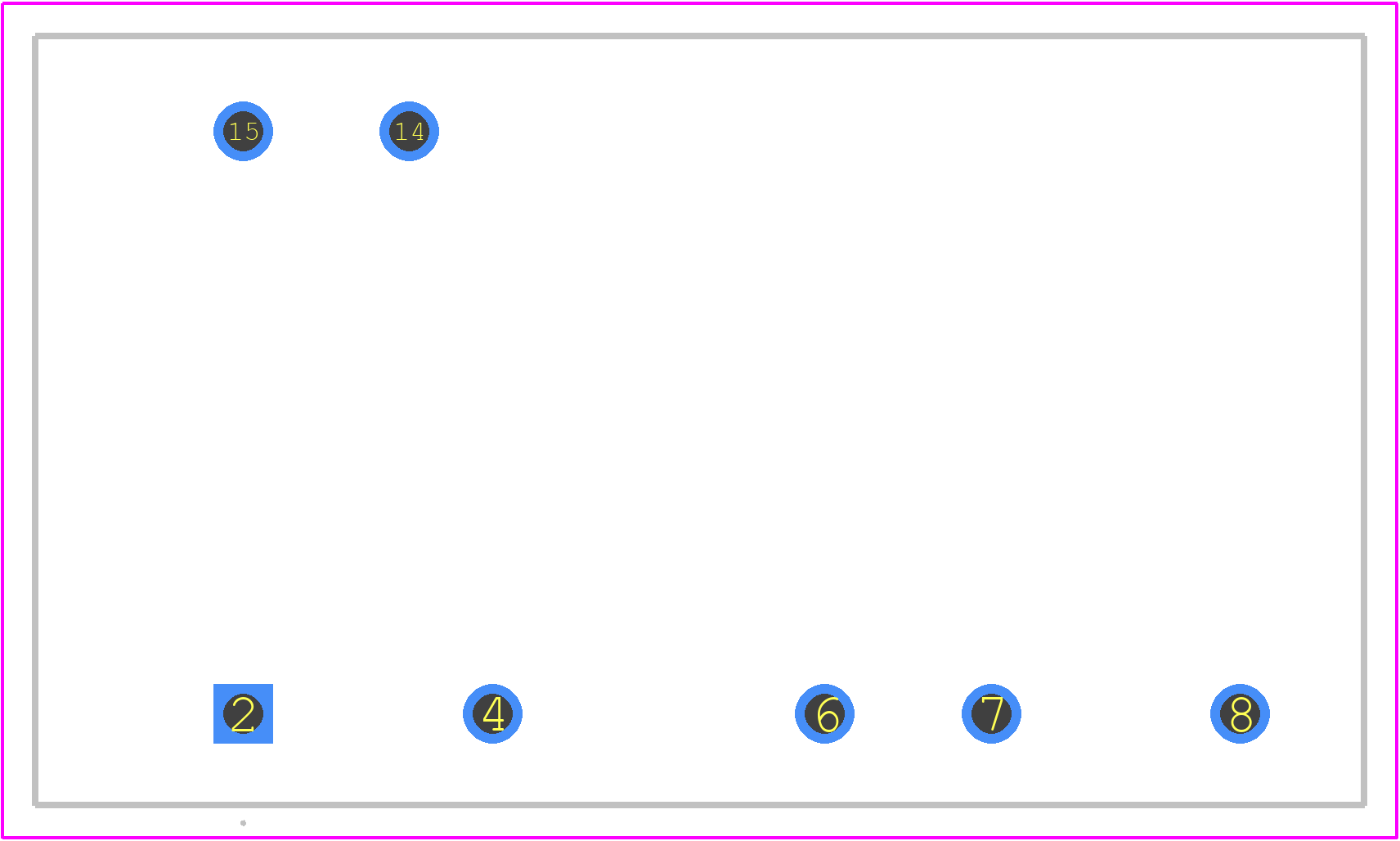

PCB Footprints

LDD-1050H-DA - Mean Well PCB footprint - Other - Other - LDD-1050H-DA-2

click to zoom

3D Models

LDD-1050H-DA - Mean Well - 3D model - Other - LDD-1050H-DA-2

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for LDD-1050H-DA
Part Number LDD-1050H-DA
Manufacturer Mean Well
Pin Count 7
Part Category Power Supply
Package Category Other
Footprint Name Other - LDD-1050H-DA-2
Released Date Jan 30, 2023
Last Modified Date Mar 7, 2023 4:10 PM UTC
Pinout / Pin List Click Here (Member Only)

LDD-1050H-DA Details

Manufacturer Part Number:
LDD-1050H-DA
Rohs Code:
Yes
Part Life Cycle Code:
Active
Package Description:
MODULE-16/7
ECCN Code:
EAR99
Factory Lead Time:
19 Weeks, 3 Days
Manufacturer:
Mean Well
YTEOL:
7
Analog IC - Other Type:
DC-DC REGULATED POWER SUPPLY MODULE
Approvals:
CE, EAC, UKCA
Efficiency (Main Output):
95%
Input Voltage-Max:
50 V
Input Voltage-Min:
6 V
Input Voltage-Nom:
48 V
JESD-30 Code:
R-XDMA-P7
Length:
40.6 mm
Number of Functions:
1
Number of Outputs:
1
Number of Terminals:
7
Operating Temperature-Max:
85 °C
Operating Temperature-Min:
-40 °C
Output Current-Max:
1.05 A
Output Voltage-Max:
45 V
Output Voltage-Min:
3 V
Package Body Material:
UNSPECIFIED
Package Code:
DMA
Package Shape:
RECTANGULAR
Package Style:
MICROELECTRONIC ASSEMBLY
Protections:
OUTPUT OVER CURRENT
Ripple Voltage (Main Out):
0.17675 Vrms
Seated Height-Max:
11.5 mm
Surface Mount:
NO
Technology:
HYBRID
Terminal Form:
PIN/PEG
Terminal Position:
DUAL
Total Power Output-Max:
47.25 W
Trim/Adjustable Output:
YES
Width:
23.5 mm

LDD-1050H-DA Frequently Asked Questions (FAQs)

The maximum cable length for the output connectors is 2 meters. However, it's recommended to keep the cable length as short as possible to minimize voltage drop and ensure reliable operation.
The LDD-1050H-DA is designed to operate in a temperature range of -20°C to 60°C. However, the output power may derate at high temperatures. It's recommended to consult the datasheet for derating curves and to ensure proper airflow and heat dissipation in high-temperature environments.
The LDD-1050H-DA has a conformal coating to protect against humidity, but it's not designed for use in extremely humid environments. It's recommended to follow the storage and operating guidelines in the datasheet to ensure reliable operation.
The LDD-1050H-DA is designed to withstand moderate vibrations, but it's not suitable for use in extremely high-vibration environments. It's recommended to consult the datasheet for vibration specifications and to ensure proper mounting and securing of the device.
The MTBF of the LDD-1050H-DA is approximately 550,000 hours at 25°C, calculated according to MIL-HDBK-217F. However, this value may vary depending on the operating conditions and environment.

Trust Checks

Community Provided

System Verified

Community Approved

LDD-1050H-DA Overview

Use the download button to access the LDD-1050H-DA schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like LDD-1, or try a keyword search, such as Power Supply Modules

About Mean Well

MEAN WELL is a manufacturer of standard power supply products used in communications, industrial, medical and automation industries. Their products include power supplies, converters, inverters, and battery chargers. MEAN WELL is headquartered in Taipei, Taiwan.
