LDD-1200H - Mean Well

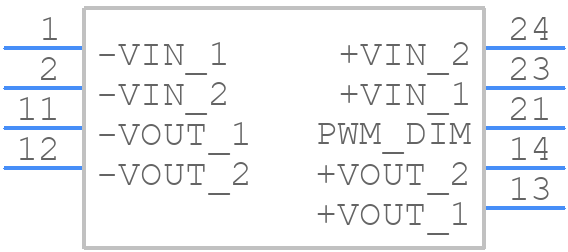

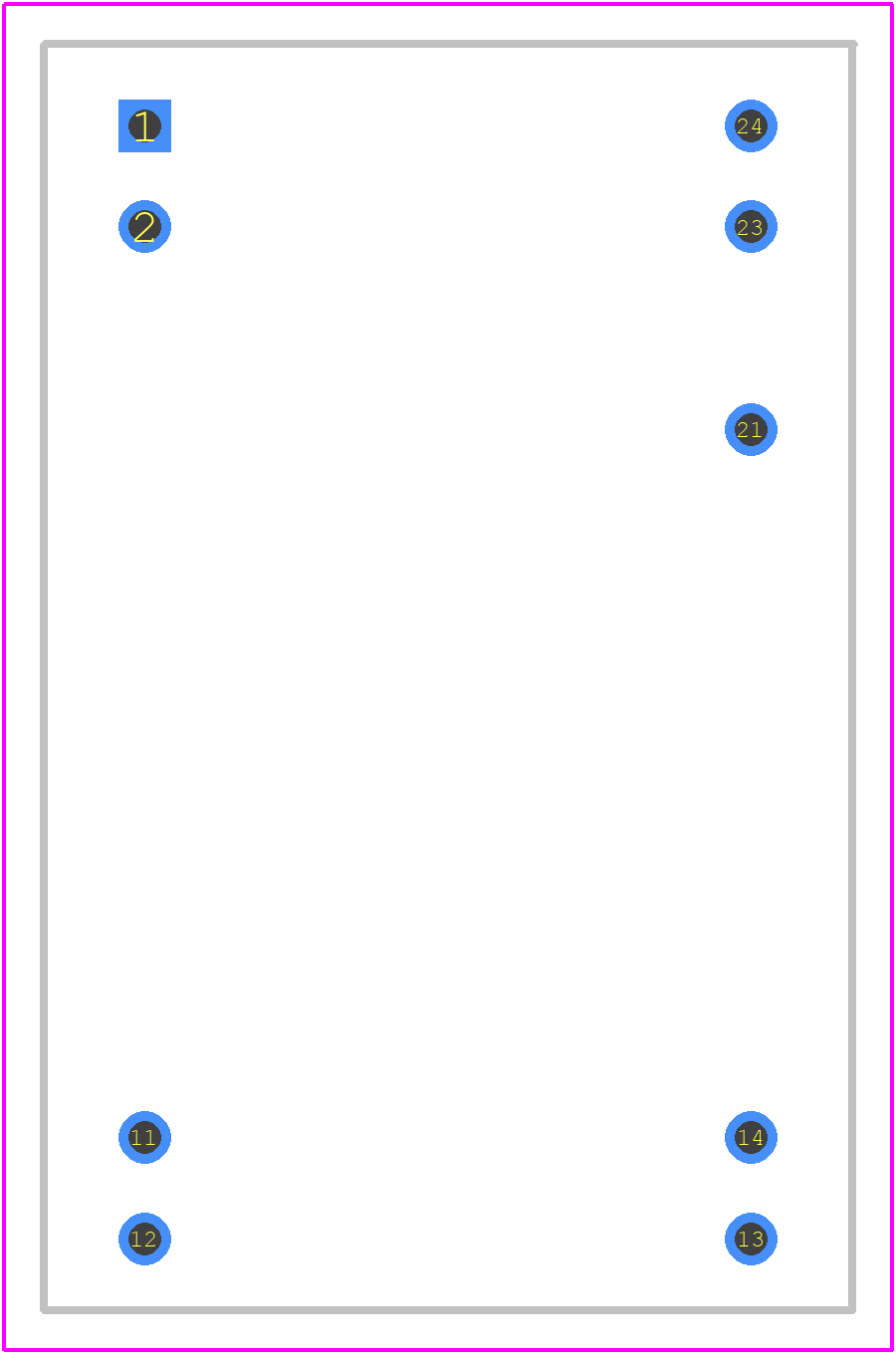

LDD-1200H Details

• Manufacturer Part Number:

  LDD-1200H

• Part Life Cycle Code:

  Obsolete

• Package Description:

  Module-9

• ECCN Code:

  EAR99

• Factory Lead Time:

  19 Weeks, 3 Days

• Manufacturer:

  Mean Well

• YTEOL:

  0

• Analog IC - Other Type:

  DC-DC REGULATED POWER SUPPLY MODULE

• Approvals:

  CE, EAC, FCC

• Efficiency (Main Output):

  97%

• Input Voltage-Max:

  52 V

• Input Voltage-Min:

  9 V

• Input Voltage-Nom:

  24 V

• JESD-30 Code:

  R-XDMA-P9

• Length:

  31.8 mm

• Number of Functions:

  1

• Number of Outputs:

  1

• Number of Terminals:

  9

• Operating Temperature-Max:

  85 °C

• Operating Temperature-Min:

  -40 °C

• Output Current-Max:

  1.2 A

• Output Voltage-Max:

  46 V

• Output Voltage-Min:

  2 V

• Package Body Material:

  UNSPECIFIED

• Package Code:

  DMA

• Package Shape:

  RECTANGULAR

• Package Style:

  MICROELECTRONIC ASSEMBLY

• Protections:

  SHORT CIRCUIT; OVER TEMPERATURE

• Ripple Voltage (Main Out):

  0.123725 Vrms

• Seated Height-Max:

  12.2 mm

• Surface Mount:

  NO

• Switching Frequency-Max:

  1000 kHz

• Technology:

  HYBRID

• Temperature Grade:

  INDUSTRIAL

• Terminal Form:

  PIN/PEG

• Terminal Pitch:

  2.54 mm

• Terminal Position:

  DUAL

• Total Power Output-Max:

  55.2 W

• Trim/Adjustable Output:

  YES

• Width:

  20.3 mm
