LDD-1200LS footprint, schematic symbol and 3D model by Mean Well

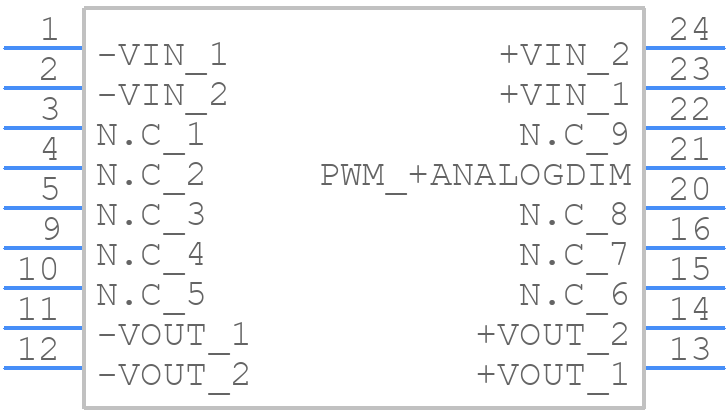

Symbol

click to zoom

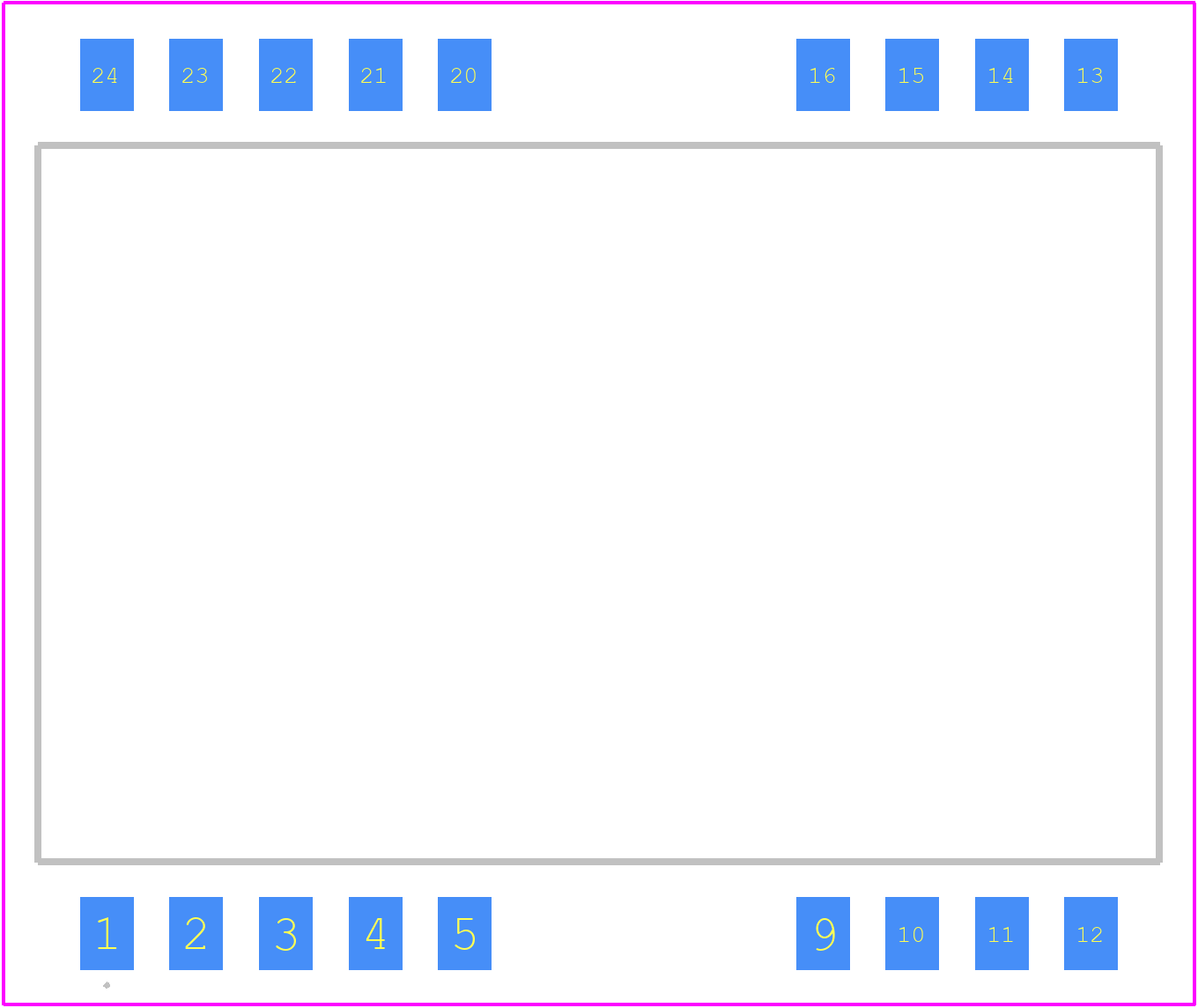

PCB Footprints

LDD-1200LS - Mean Well PCB footprint - Other - Other - LDD-1200LS-1

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for LDD-1200LS
Part Number LDD-1200LS
Manufacturer Mean Well
Pin Count 18
Part Category Power Supply
Package Category Other
Footprint Name Other - LDD-1200LS-1
Released Date Sep 7, 2022
Last Modified Date Mar 7, 2023 4:10 PM UTC
Pinout / Pin List Click Here (Member Only)

LDD-1200LS Details

Manufacturer Part Number:
LDD-1200LS
Part Life Cycle Code:
Obsolete
ECCN Code:
EAR99
Factory Lead Time:
19 Weeks, 3 Days
Manufacturer:
Mean Well
YTEOL:
0
Analog IC - Other Type:
DC-DC REGULATED POWER SUPPLY MODULE

Trust Checks

Community Provided

System Verified

Community Approved

LDD-1200LS Overview

Use the download button to access the LDD-1200LS schematic symbol and PCB footprint.

To find more CAD model downloads similar to this part, try a partial part number search, like LDD-1, or try a keyword search, such as Power Supply Modules

About Mean Well

MEAN WELL is a manufacturer of standard power supply products used in communications, industrial, medical and automation industries. Their products include power supplies, converters, inverters, and battery chargers. MEAN WELL is headquartered in Taipei, Taiwan.
