LDD-1500L - Mean Well

Description: LED Power Supplies 6-36Vin 2-30V 1500mA Pin DC-DC LED Driver

Download LDD-1500L Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

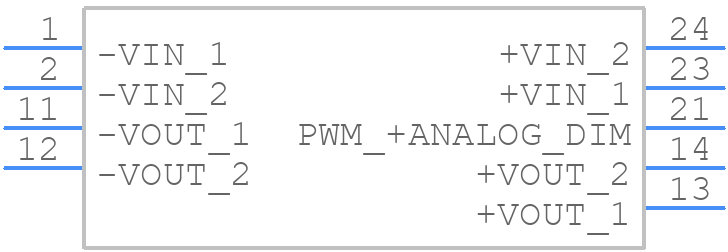

LDD-1500L - Mean Well - PCB symbol
click to zoom
PCB Footprints

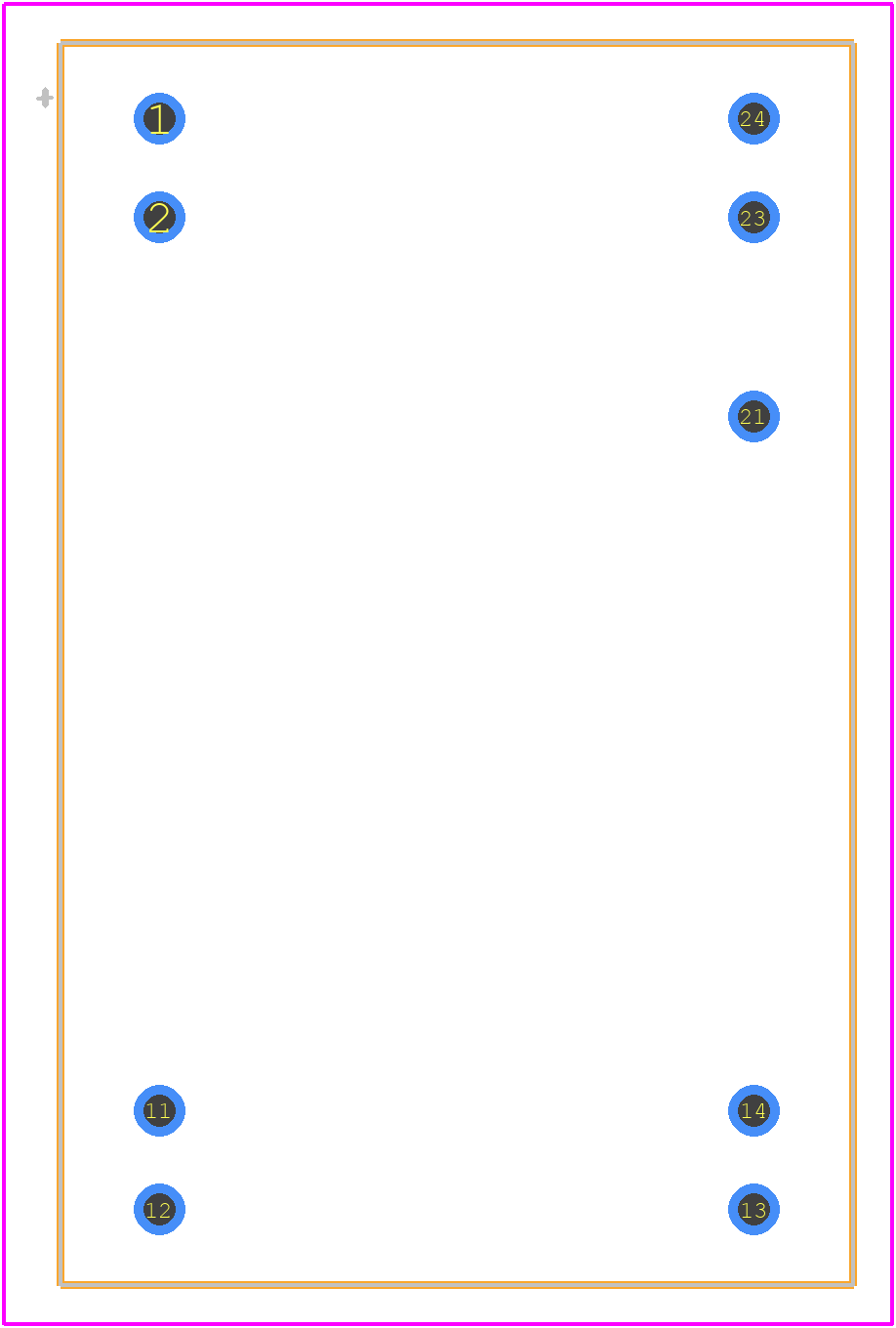

LDD-1500L - Mean Well PCB footprint - Other - Other - LDD-1500L-2
click to zoom
3D Models
LDD-1500L - Mean Well - 3D model - Other - LDD-1500L-2
click to zoom

LDD-1500L Details

  • Manufacturer Part Number:

    LDD-1500L

  • Part Life Cycle Code:

    Obsolete

  • ECCN Code:

    EAR99

  • Factory Lead Time:

    19 Weeks, 3 Days

  • Manufacturer:

    Mean Well

  • YTEOL:

    0

  • Analog IC - Other Type:

    DC-DC REGULATED POWER SUPPLY MODULE

LDD-1500L Frequently Asked Questions (FAQs)

  • The maximum ambient temperature for the LDD-1500L is 50°C (122°F) with derating, and 40°C (104°F) without derating.
  • Yes, the LDD-1500L is designed to operate in humid environments, but it's recommended to follow the derating curve for high humidity conditions.
  • The minimum load requirement for the LDD-1500L is 10% of the maximum output current to ensure stable operation.
  • Yes, you can parallel multiple LDD-1500L units, but it's recommended to consult with Mean Well's application engineers to ensure proper configuration and thermal management.
  • The MTBF of the LDD-1500L is approximately 550,000 hours at 25°C (77°F) ambient temperature, calculated according to MIL-HDBK-217F.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LDD-1500L Overview

Use the download button to access the LDD-1500L schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LDD-1, or try a keyword search, such as Power Supply Modules
