The maximum capacitance is not explicitly stated in the datasheet, but according to Mean Well's application notes, the recommended capacitance range is 220uF to 470uF. Using a capacitance value outside this range may affect the stability and performance of the driver.
While the LDD-500H is designed for standard LED configurations, it's possible to use it with non-standard configurations. However, this may require additional components or modifications to the driver's output stage. It's recommended to consult with Mean Well's technical support or a qualified engineer to ensure compatibility and optimal performance.
To ensure the LDD-500H operates within a specific temperature range, you can use thermal management techniques such as heat sinks, thermal interfaces, and airflow management. Additionally, you can consider using a temperature sensor and a control circuit to monitor and regulate the temperature. Consult the datasheet and application notes for more information on thermal design considerations.
The LDD-500H is designed to operate in a normal indoor environment with a relative humidity of 20% to 80%. For high-humidity environments, you may need to take additional precautions such as conformal coating, potting, or using a sealed enclosure to prevent moisture ingress. Consult Mean Well's technical support for specific guidance on using the LDD-500H in high-humidity environments.
Mean Well provides a recommended PCB layout and component placement in their application notes and evaluation board documentation. It's essential to follow these guidelines to ensure optimal performance, minimize electromagnetic interference (EMI), and reduce the risk of overheating.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
LDD-500H Overview

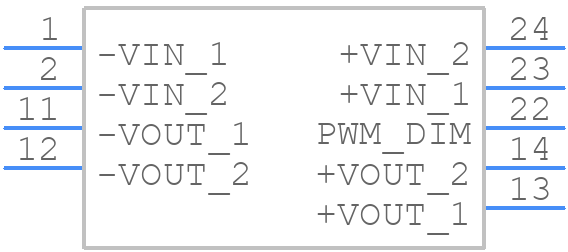

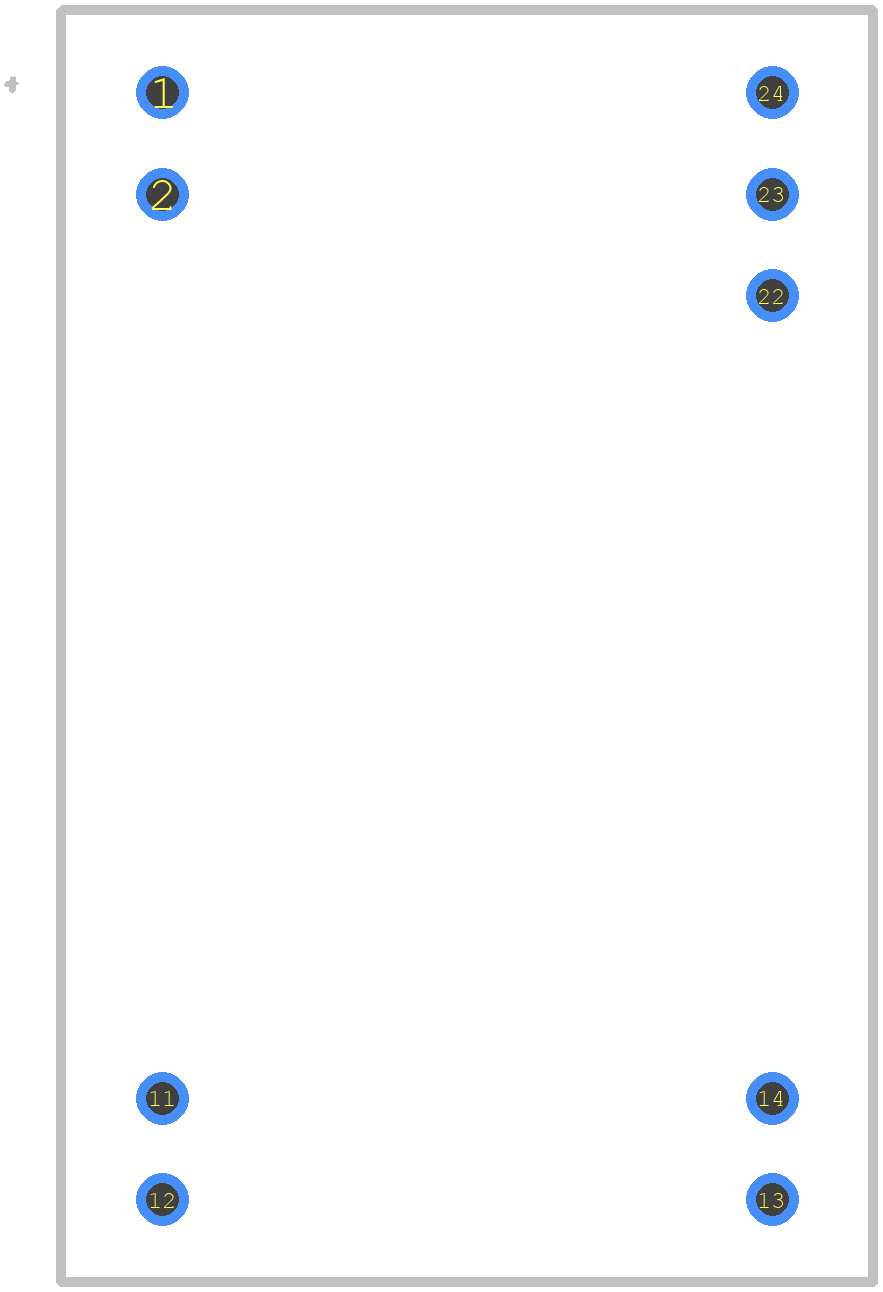

Use the download button to access the LDD-500H schematic symbol, PCB footprint, and 3D model.
