LDD-700H-DA footprint, schematic symbol and 3D model by Mean Well

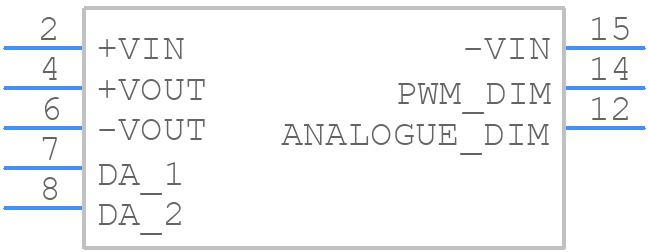

Symbol

click to zoom

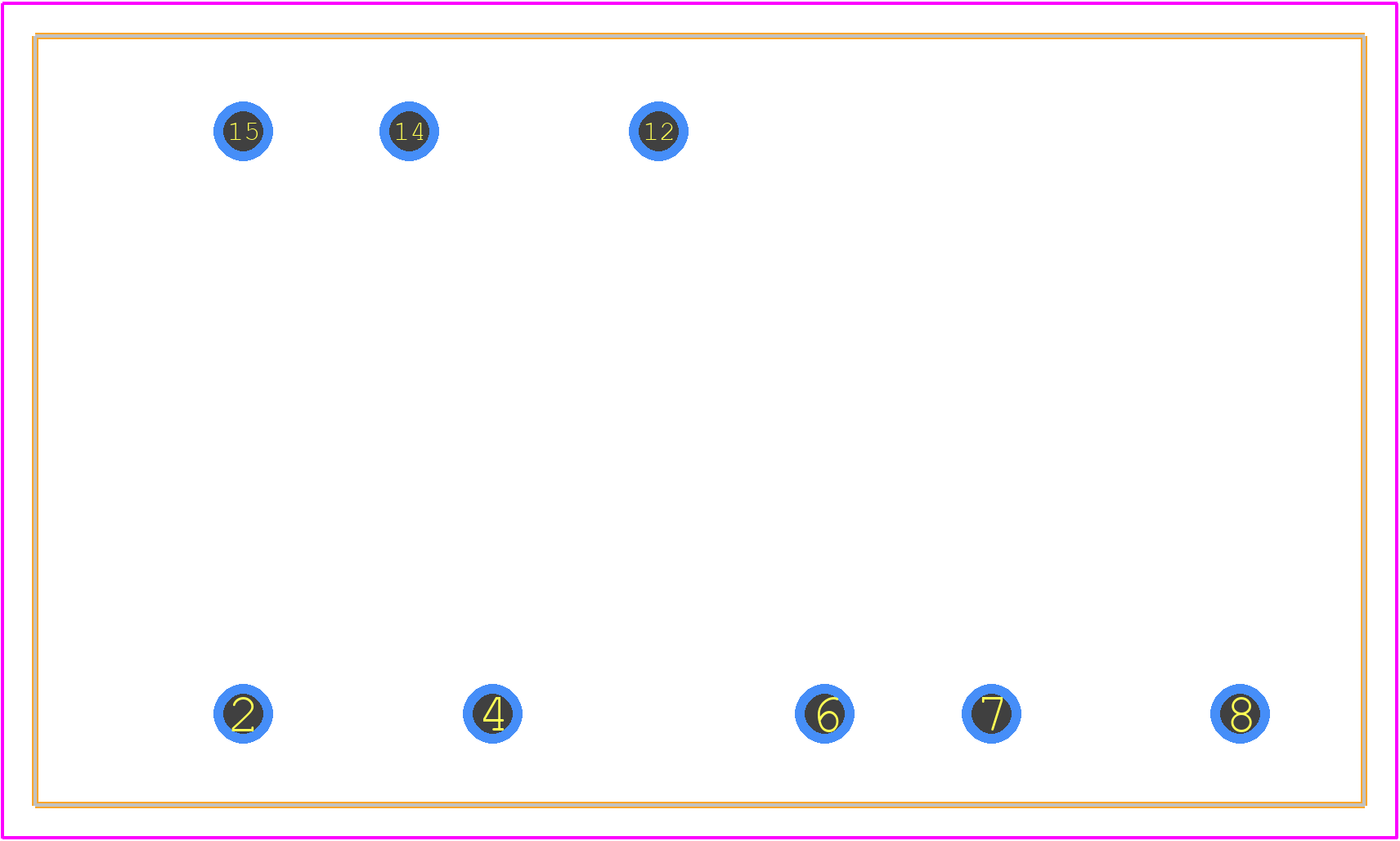

PCB Footprints

LDD-700H-DA - Mean Well PCB footprint - Other - Other - LDD-700H-DA-1

click to zoom

3D Models

LDD-700H-DA - Mean Well - 3D model - Other - LDD-700H-DA-1

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for LDD-700H-DA
Part Number LDD-700H-DA
Manufacturer Mean Well
Pin Count 8
Part Category Power Supply
Package Category Other
Footprint Name Other - LDD-700H-DA-1
Released Date Jan 31, 2019
Last Modified Date Mar 7, 2023 4:10 PM UTC
Pinout / Pin List Click Here (Member Only)

LDD-700H-DA Details

Manufacturer Part Number:
LDD-700H-DA
Part Life Cycle Code:
Active
Package Description:
MODULE-16/7
ECCN Code:
EAR99
Factory Lead Time:
19 Weeks, 3 Days
Manufacturer:
Mean Well
YTEOL:
7
Analog IC - Other Type:
DC-DC REGULATED POWER SUPPLY MODULE
Approvals:
CE, EAC, UKCA
Efficiency (Main Output):
95%
Input Voltage-Max:
50 V
Input Voltage-Min:
6 V
Input Voltage-Nom:
48 V
JESD-30 Code:
R-XDMA-P7
Length:
40.6 mm
Number of Functions:
1
Number of Outputs:
1
Number of Terminals:
7
Operating Temperature-Max:
85 °C
Operating Temperature-Min:
-40 °C
Output Current-Max:
0.7 A
Output Voltage-Max:
45 V
Output Voltage-Min:
3 V
Package Body Material:
UNSPECIFIED
Package Code:
DMA
Package Shape:
RECTANGULAR
Package Style:
MICROELECTRONIC ASSEMBLY
Protections:
OUTPUT OVER CURRENT
Ripple Voltage (Main Out):
0.17675 Vrms
Seated Height-Max:
11.5 mm
Surface Mount:
NO
Technology:
HYBRID
Terminal Form:
PIN/PEG
Terminal Position:
DUAL
Total Power Output-Max:
31.5 W
Trim/Adjustable Output:
YES
Width:
23.5 mm

LDD-700H-DA Frequently Asked Questions (FAQs)

The maximum cable length for the output connectors is 2 meters. However, it's recommended to keep the cable length as short as possible to minimize voltage drop and ensure reliable operation.
The LDD-700H-DA is designed to operate in a temperature range of -20°C to 60°C. While it can tolerate high temperatures, it's not recommended to operate it above 50°C for extended periods to ensure reliability and longevity.
To ensure the output is stable and regulated, make sure to follow the recommended layout and wiring guidelines, and provide a stable input voltage within the specified range. Additionally, ensure that the output is not overloaded and that the ambient temperature is within the specified range.
Yes, the LDD-700H-DA is compatible with dimmable LED modules. However, ensure that the dimming protocol and frequency are compatible with the driver's specifications. It's recommended to consult the datasheet and the LED module's documentation for specific requirements.
The MTBF of the LDD-700H-DA is approximately 500,000 hours at 40°C ambient temperature, calculated according to MIL-HDBK-217F. This indicates a high level of reliability and long lifespan for the driver.

Trust Checks

Expert Contribution

System Verified

Community Approved

LDD-700H-DA Overview

Use the download button to access the LDD-700H-DA schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like LDD-7, or try a keyword search, such as Power Supply Modules

About Mean Well

MEAN WELL is a manufacturer of standard power supply products used in communications, industrial, medical and automation industries. Their products include power supplies, converters, inverters, and battery chargers. MEAN WELL is headquartered in Taipei, Taiwan.
