LDD-700H - Mean Well

Description: LED Power Supplies 9-56Vin 2-52Vout 700mA LED Driver

Download LDD-700H Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

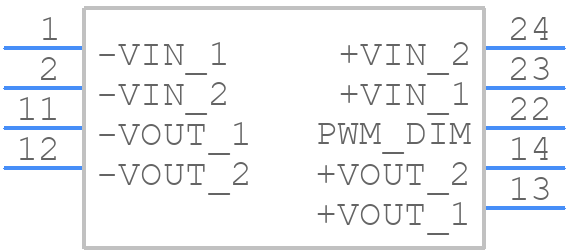

LDD-700H - Mean Well - PCB symbol
click to zoom
PCB Footprints

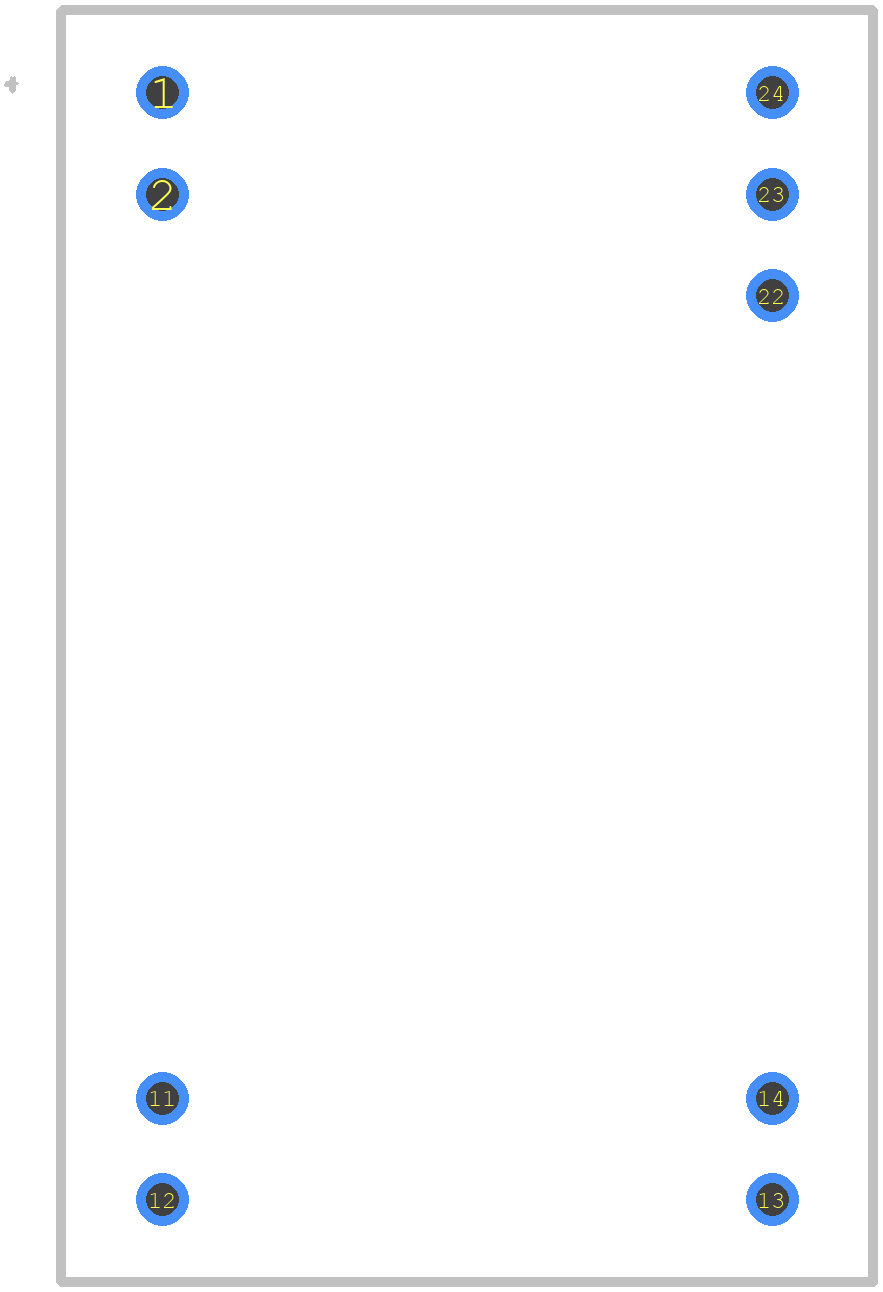

LDD-700H - Mean Well PCB footprint - Other - Other - LDD-700H
click to zoom
3D Models
LDD-700H - Mean Well - 3D model - Other - LDD-700H
click to zoom

LDD-700H Details

  • Manufacturer Part Number:

    LDD-700H

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    PACKAGE-24/9

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Mean Well

  • YTEOL:

    0

  • Interface IC Type:

    LED DISPLAY DRIVER

  • JESD-30 Code:

    R-PDMA-P9

  • Length:

    31.8 mm

  • Multiplexed Display Capability:

    NO

  • Number of Functions:

    1

  • Number of Terminals:

    9

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    DMA

  • Package Shape:

    RECTANGULAR

  • Package Style:

    MICROELECTRONIC ASSEMBLY

  • Peak Reflow Temperature (Cel):

    240

  • Seated Height-Max:

    12.25 mm

  • Supply Voltage-Max:

    56 V

  • Supply Voltage-Min:

    9 V

  • Supply Voltage-Nom:

    48 V

  • Surface Mount:

    NO

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Form:

    PIN/PEG

  • Terminal Pitch:

    2.54 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    10

  • Width:

    20.3 mm

LDD-700H Frequently Asked Questions (FAQs)

  • The maximum ambient temperature for the LDD-700H is 50°C (122°F) with derating, and 40°C (104°F) without derating.
  • Yes, the LDD-700H has a conformal coating that protects it from humidity, but it's still recommended to follow the storage and operating humidity guidelines in the datasheet.
  • To ensure reliability in high-vibration applications, it's recommended to follow the mounting guidelines in the datasheet, and consider using additional mechanical fastening or potting compounds to secure the device.
  • The recommended input voltage range for the LDD-700H is 100-240VAC, but it can operate from 90-264VAC with some derating.
  • Yes, the LDD-700H can be used in a redundant configuration, but it's recommended to follow the guidelines in the datasheet for paralleling and redundancy to ensure reliable operation.
