LDFMPVR - STMicroelectronics

Description: 500 mA very low drop voltage regulator, Input voltage from 2.5 to 16 V, Very low dropout voltage (300 mV max. at 500 mA load), Temperature range: - 40 °C to 125 °C.

Download LDFMPVR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

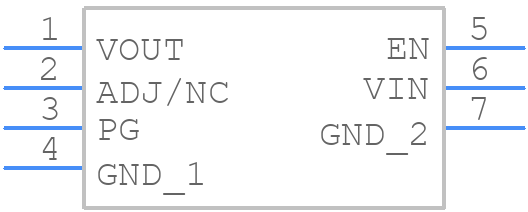

Symbol
LDFMPVR - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
LDFMPVR - STMicroelectronics PCB footprint - Other - Other - LDFMPVR
click to zoom
3D Models
LDFMPVR - STMicroelectronics - 3D model - Other - LDFMPVR
click to zoom

LDFMPVR Details

  • Manufacturer Part Number:

    LDFMPVR

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    DFN-6

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    16 Weeks

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    8

  • Adjustability:

    ADJUSTABLE

  • Dropout Voltage1-Max:

    0.3 V

  • Dropout Voltage1-Nom:

    0.125 V

  • JESD-30 Code:

    S-PDSO-N6

  • JESD-609 Code:

    e3

  • Length:

    2 mm

  • Line Regulation-Max (%/V):

    0.04

  • Load Regulation-Max:

    1.25%

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    6

  • Operating Temperature TJ-Max:

    125 °C

  • Operating Temperature TJ-Min:

    -40 °C

  • Output Current1-Max:

    0.5 A

  • Output Voltage1-Max:

    12 V

  • Output Voltage1-Min:

    0.8 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Packing Method:

    TR

  • Peak Reflow Temperature (Cel):

    260

  • Regulator Type:

    ADJUSTABLE POSITIVE SINGLE OUTPUT LDO REGULATOR

  • Seated Height-Max:

    1 mm

  • Surface Mount:

    YES

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Width:

    2 mm

LDFMPVR Frequently Asked Questions (FAQs)

  • STMicroelectronics recommends a 4-layer PCB with a solid ground plane, and to keep the input and output tracks as short as possible. Additionally, it's recommended to use a common mode filter and to decouple the input and output with capacitors.
  • STMicroelectronics provides a configuration tool that allows you to customize the LDFMPVR for your specific application. The tool helps you to select the correct configuration for your input voltage, output voltage, and other parameters.
  • The maximum input voltage that the LDFMPVR can handle is 18V. Exceeding this voltage may damage the device.
  • STMicroelectronics recommends checking the input voltage, output voltage, and current consumption to identify the root cause of the issue. Additionally, checking the PCB layout and thermal design can help to identify any design-related issues.
  • The LDFMPVR is rated for operation up to 125°C. However, the device's performance and reliability may be affected at high temperatures. It's recommended to consult the datasheet and application notes for specific guidance on high-temperature operation.
