Part Image

LDFPVR - STMicroelectronics

Description: STMicroelectronics LDFPVR, LDO Voltage Regulator, Adjustable 1A, 0.8 → 12 V ±1.5%, 6-Pin DFN

Download LDFPVR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

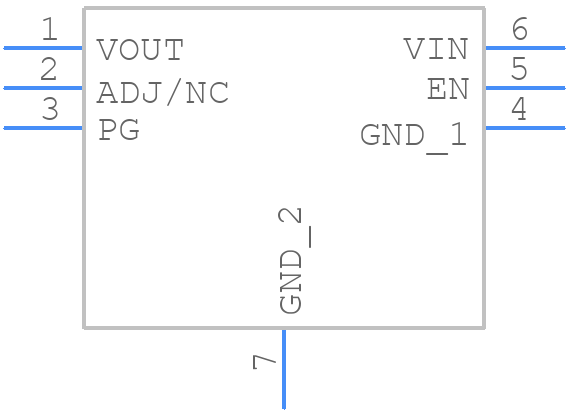

Symbol
LDFPVR - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
LDFPVR - STMicroelectronics PCB footprint - Small Outline No-lead - Small Outline No-lead - DFN6 (2x2)+1
click to zoom
3D Models
LDFPVR - STMicroelectronics - 3D model - Small Outline No-lead - DFN6 (2x2)+1
click to zoom

LDFPVR Details

  • Manufacturer Part Number:

    LDFPVR

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    DFN-6

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    7

  • Adjustability:

    ADJUSTABLE

  • Dropout Voltage1-Max:

    0.5 V

  • Dropout Voltage1-Nom:

    0.2 V

  • JESD-30 Code:

    S-PDSO-N6

  • JESD-609 Code:

    e3

  • Length:

    2 mm

  • Line Regulation-Max (%/V):

    0.04

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    6

  • Operating Temperature TJ-Max:

    125 °C

  • Operating Temperature TJ-Min:

    -40 °C

  • Output Current1-Max:

    1 A

  • Output Voltage1-Max:

    12 V

  • Output Voltage1-Min:

    0.8 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Packing Method:

    TR

  • Peak Reflow Temperature (Cel):

    260

  • Regulator Type:

    ADJUSTABLE POSITIVE SINGLE OUTPUT LDO REGULATOR

  • Seated Height-Max:

    1 mm

  • Surface Mount:

    YES

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Width:

    2 mm

LDFPVR Frequently Asked Questions (FAQs)

  • The maximum input voltage that can be applied to the LDFPVR is 30V, but it's recommended to keep it below 20V for optimal performance and reliability.
  • To ensure stability of the output voltage, it's recommended to use a minimum output capacitance of 10uF and an ESR (Equivalent Series Resistance) of less than 1 ohm. Additionally, the input capacitor should be at least 1uF with an ESR of less than 1 ohm.
  • The minimum input voltage required for the LDFPVR to function properly is typically 2V above the output voltage. For example, if the output voltage is 3.3V, the minimum input voltage should be at least 5.3V.
  • The LDFPVR is rated for operation up to 125°C, but the maximum junction temperature should not exceed 150°C. It's recommended to derate the output current and input voltage at high temperatures to ensure reliability.
  • The power dissipation of the LDFPVR can be calculated using the formula: Pd = (Vin - Vout) x Iout, where Vin is the input voltage, Vout is the output voltage, and Iout is the output current.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LDFPVR Overview

Use the download button to access the LDFPVR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LDFPV, or try a keyword search

About STMicroelectronics

STMicroelectronics (ST) is a global semiconductor company that designs, manufactures, and markets a broad range of integrated circuits (ICs), discrete devices, and other electronic components. STMicroelectronics offers a diverse portfolio of semiconductor products covering a wide range of applications and industries. Their product categories include microcontrollers, analog and mixed-signal ICs, MEMS (Micro-Electro-Mechanical Systems) sensors, power management ICs, RF (Radio Frequency) transceivers, aut
