LDK715PU33R - STMicroelectronics

Description: High input voltage 85 mA LDO linear regulator

Download LDK715PU33R Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

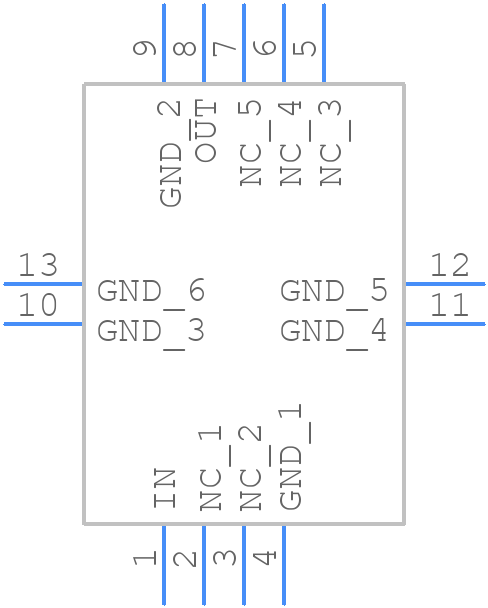

Symbol
LDK715PU33R - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
LDK715PU33R - STMicroelectronics PCB footprint - Other - Other - LDK715PU33R-2
click to zoom
3D Models
LDK715PU33R - STMicroelectronics - 3D model - Other - LDK715PU33R-2
click to zoom

LDK715PU33R Details

  • Manufacturer Part Number:

    LDK715PU33R

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    DFN-8

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    16 Weeks

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    6

  • Adjustability:

    FIXED

  • Dropout Voltage1-Max:

    1 V

  • Dropout Voltage1-Nom:

    1 V

  • Input Voltage Absolute-Max:

    26 V

  • Input Voltage-Max:

    24 V

  • Input Voltage-Min:

    4.3 V

  • JESD-30 Code:

    S-PDSO-N8

  • Length:

    3 mm

  • Line Regulation-Max:

    0.0026004%

  • Load Regulation-Max:

    0.0084051%

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    8

  • Operating Temperature TJ-Max:

    125 °C

  • Operating Temperature TJ-Min:

    -40 °C

  • Output Current1-Max:

    0.085 A

  • Output Voltage1-Max:

    3.366 V

  • Output Voltage1-Min:

    3.234 V

  • Output Voltage1-Nom:

    3.3 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Packing Method:

    TR

  • Peak Reflow Temperature (Cel):

    NOT SPECIFIED

  • Regulator Type:

    FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR

  • Seated Height-Max:

    1 mm

  • Surface Mount:

    YES

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

  • Voltage Tolerance-Max:

    2%

  • Width:

    3 mm

LDK715PU33R Frequently Asked Questions (FAQs)

  • STMicroelectronics provides a recommended PCB layout in the application note AN2663, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and minimize electromagnetic interference (EMI).
  • The input capacitor selection depends on the input voltage, output voltage, and output current. A general guideline is to choose a capacitor with a voltage rating of at least 1.5 times the input voltage, and a capacitance value between 10uF to 100uF. The datasheet provides more detailed guidance on capacitor selection.
  • The LDK715PU33R is rated for operation up to 85°C ambient temperature, but it's recommended to derate the output current and voltage to ensure reliable operation at higher temperatures. Consult the datasheet for thermal derating curves and guidelines.
  • To ensure EMC, follow the recommended PCB layout and component placement guidelines, use a shielded enclosure, and add EMI filters or chokes as necessary. Additionally, ensure that the input and output cables are properly shielded and routed to minimize radiation.
  • The typical efficiency of the LDK715PU33R is around 85-90% depending on the input voltage, output voltage, and output current. The datasheet provides efficiency curves and tables for different operating conditions.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LDK715PU33R Overview

Use the download button to access the LDK715PU33R schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LDK71, or try a keyword search, such as Linear Regulator ICs
