LDLN015PU33R - STMicroelectronics

Description: LDO Voltage Regulators 150 mA - ultra low noise - high PSRR linear voltage regulator IC

Download LDLN015PU33R Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

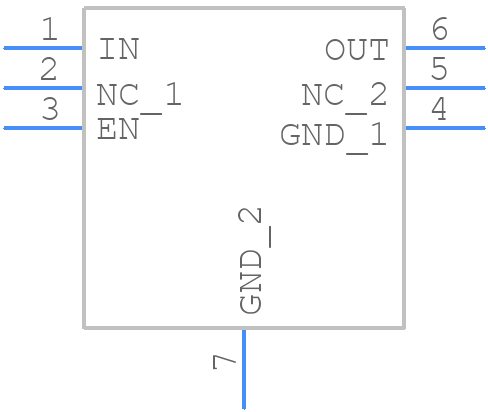

Symbol
LDLN015PU33R - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
LDLN015PU33R - STMicroelectronics PCB footprint - Small Outline No-lead - Small Outline No-lead - DFN6 (2x2) package1
click to zoom
3D Models
LDLN015PU33R - STMicroelectronics - 3D model - Small Outline No-lead - DFN6 (2x2) package1
click to zoom

LDLN015PU33R Details

  • Manufacturer Part Number:

    LDLN015PU33R

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    DFN

  • Package Description:

    ROHS COMPLIANT, DFN-6

  • Pin Count:

    6

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    0

  • Adjustability:

    FIXED

  • Dropout Voltage1-Nom:

    0.086 V

  • Input Voltage Absolute-Max:

    7 V

  • Input Voltage-Max:

    5.5 V

  • Input Voltage-Min:

    2.1 V

  • JESD-30 Code:

    R-PDSO-N6

  • Length:

    2 mm

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    6

  • Operating Temperature TJ-Max:

    125 °C

  • Operating Temperature TJ-Min:

    -40 °C

  • Output Current1-Max:

    0.15 A

  • Output Voltage1-Max:

    3.366 V

  • Output Voltage1-Min:

    3.234 V

  • Output Voltage1-Nom:

    3.3 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Equivalence Code:

    SOLCC6,.08,20

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Packing Method:

    TR

  • Peak Reflow Temperature (Cel):

    NOT SPECIFIED

  • Qualification Status:

    Not Qualified

  • Regulator Type:

    FIXED POSITIVE SINGLE OUTPUT STANDARD REGULATOR

  • Seated Height-Max:

    0.6 mm

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

  • Voltage Tolerance-Max:

    2%

  • Width:

    2 mm

LDLN015PU33R Frequently Asked Questions (FAQs)

  • STMicroelectronics provides a recommended PCB layout in the LDLN015PU33R application note (AN5272). It's essential to follow the recommended layout to minimize electromagnetic interference (EMI) and ensure optimal performance.
  • The input capacitor value depends on the input voltage, output voltage, and output current. A general rule of thumb is to choose a capacitor with a value between 1uF to 10uF, with a voltage rating higher than the input voltage. Consult the datasheet and application note for more specific guidance.
  • The LDLN015PU33R is rated for operation up to 125°C ambient temperature. However, it's recommended to derate the output current and voltage according to the temperature derating curve provided in the datasheet to ensure reliable operation.
  • Yes, the LDLN015PU33R is AEC-Q100 qualified, making it suitable for automotive applications. Additionally, it's manufactured with high-reliability processes, making it suitable for high-reliability applications. However, it's essential to consult the datasheet and application note for specific guidance on using the device in these applications.
  • To ensure EMC, follow the recommended PCB layout, use a shielded enclosure, and add EMI filters as necessary. Additionally, consult the application note and datasheet for guidance on minimizing radiated emissions and conducted emissions.
