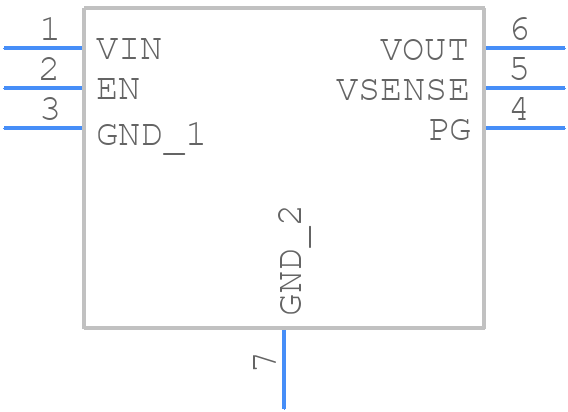

LDQ40PU33R - STMicroelectronics

LDQ40PU33R Details

• Manufacturer Part Number:

  LDQ40PU33R

• Part Life Cycle Code:

  Active

• Package Description:

  DFN-6

• ECCN Code:

  EAR99

• HTS Code:

  8542.39.00.60

• Manufacturer:

  STMicroelectronics

• YTEOL:

  7

• Adjustability:

  FIXED

• Dropout Voltage1-Max:

  1 V

• Dropout Voltage1-Nom:

  0.5 V

• Input Voltage Absolute-Max:

  42 V

• Input Voltage-Max:

  40 V

• Input Voltage-Min:

  4.3 V

• JESD-30 Code:

  S-XDSO-N6

• Length:

  2 mm

• Line Regulation-Max:

  0.022605%

• Load Regulation-Max:

  0.003%

• Number of Functions:

  1

• Number of Outputs:

  1

• Number of Terminals:

  6

• Operating Temperature TJ-Max:

  150 °C

• Operating Temperature TJ-Min:

  -40 °C

• Output Current1-Max:

  0.25 A

• Output Voltage1-Max:

  3.3495 V

• Output Voltage1-Min:

  3.2505 V

• Output Voltage1-Nom:

  3.3 V

• Package Body Material:

  UNSPECIFIED

• Package Code:

  HVSON

• Package Equivalence Code:

  SOLCC6,.08,25

• Package Shape:

  SQUARE

• Package Style:

  SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

• Packing Method:

  TR, 7 INCH

• Regulator Type:

  FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR

• Screening Level:

  AEC-Q100

• Surface Mount:

  YES

• Terminal Form:

  NO LEAD

• Terminal Pitch:

  0.65 mm

• Terminal Position:

  DUAL

• Voltage Tolerance-Max:

  1.5%

• Width:

  2 mm
