Description:The LDS6204 PureTouch® capacitive touch sensor IC is a highly accurate solution for capacitive touch sensor applications, supporting a wide variety of possible touch input types including buttons, scroll wheels, and sliders. The device contains 8 capacitive sensor input pins and supports enhanced functionality including proximity-sensing and power-on touch detection.
Renesas provides a recommended PCB layout guide for the LDS6204NTGI8, which includes guidelines for thermal vias, copper pours, and component placement to ensure optimal thermal performance. It's available on the Renesas website or through their support team.
The LDS6204NTGI8 has a specific power-up sequence requirement to ensure proper operation. The recommended sequence is to power up the VCC pin first, followed by the VDD pin, and then the input signals. A delay of at least 10ms is recommended between powering up VCC and VDD.
While the datasheet specifies an operating temperature range of -40°C to 125°C, it's essential to note that the device's performance and reliability may degrade at extreme temperatures. Renesas recommends operating the device within a temperature range of -20°C to 100°C for optimal performance and reliability.
Renesas provides a troubleshooting guide for I2C interface issues, which includes checking the clock frequency, signal integrity, and slave address configuration. Additionally, using an I2C bus analyzer or logic analyzer can help identify issues with the I2C communication.
Renesas recommends using a human-body model (HBM) ESD protection device with a rating of at least 2kV to protect the LDS6204NTGI8 from electrostatic discharge. Additionally, following proper PCB design and layout guidelines can help reduce the risk of ESD damage.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
LDS6204NTGI8 Overview

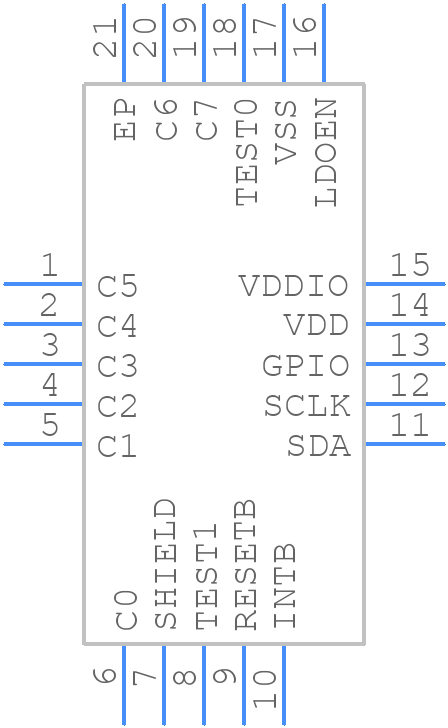

Use the download button to access the LDS6204NTGI8 schematic symbol, PCB footprint, and 3D model.
