LE25S161PCTXG - onsemi

Description: NOR Flash 16M BIT SERIAL FLASH MEMO

Download LE25S161PCTXG Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

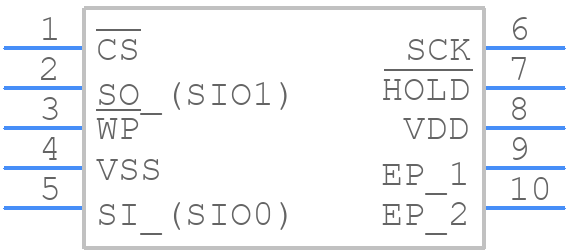

LE25S161PCTXG - onsemi - PCB symbol
click to zoom
PCB Footprints
LE25S161PCTXG - onsemi PCB footprint - Other - Other - UDFN8, 4x3, 0.8P CASE 506DC ISSUE O
click to zoom
3D Models
LE25S161PCTXG - onsemi - 3D model - Other - UDFN8, 4x3, 0.8P CASE 506DC ISSUE O
click to zoom

LE25S161PCTXG Details

  • Manufacturer Part Number:

    LE25S161PCTXG

  • Brand Name:

    ON Semiconductor

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    UDFN-8

  • Manufacturer Package Code:

    506DC

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.32.00.51

  • Factory Lead Time:

    8 Weeks

  • Date Of Intro:

    2016-02-08

  • Manufacturer:

    onsemi

  • YTEOL:

    0

  • Clock Frequency-Max (fCLK):

    70 MHz

  • Data Retention Time-Min:

    20

  • Endurance:

    100000 Write/Erase Cycles

  • JESD-30 Code:

    R-PDSO-N8

  • JESD-609 Code:

    e3

  • Length:

    4 mm

  • Memory Density:

    16777216 bit

  • Memory IC Type:

    FLASH

  • Memory Width:

    8

  • Moisture Sensitivity Level:

    2

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Number of Words:

    2097152 words

  • Number of Words Code:

    2000000

  • Operating Mode:

    SYNCHRONOUS

  • Operating Temperature-Max:

    90 °C

  • Operating Temperature-Min:

    -40 °C

  • Organization:

    2MX8

  • Output Characteristics:

    3-STATE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    VSON

  • Package Equivalence Code:

    SOLCC8,.12,32

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, VERY THIN PROFILE

  • Parallel/Serial:

    SERIAL

  • Peak Reflow Temperature (Cel):

    260

  • Programming Voltage:

    1.8 V

  • Serial Bus Type:

    SPI

  • Standby Current-Max:

    0.000012 A

  • Supply Current-Max:

    0.0075 mA

  • Supply Voltage-Max (Vsup):

    1.95 V

  • Supply Voltage-Min (Vsup):

    1.65 V

  • Supply Voltage-Nom (Vsup):

    1.8 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    MATTE TIN

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.8 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Type:

    NOR TYPE

  • Width:

    3 mm

  • Write Protection:

    HARDWARE/SOFTWARE
