LED2000PUR - STMicroelectronics

Description: LED2000PUR, DC-DC Converter, -1 → 18 V, Step Down, 1 MHz, 8-Pin VFQFPN

Download LED2000PUR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

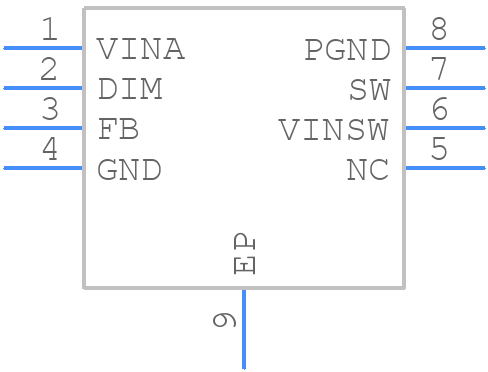

LED2000PUR - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
LED2000PUR - STMicroelectronics PCB footprint - Small Outline No-lead - Small Outline No-lead - 8-VFQFPN (4x4)
click to zoom
3D Models
LED2000PUR - STMicroelectronics - 3D model - Small Outline No-lead - 8-VFQFPN (4x4)
click to zoom

LED2000PUR Details

  • Manufacturer Part Number:

    LED2000PUR

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    16 Weeks

  • Manufacturer:

    STMicroelectronics

  • Interface IC Type:

    LED DISPLAY DRIVER

  • JESD-609 Code:

    e4

  • Moisture Sensitivity Level:

    3

  • Peak Reflow Temperature (Cel):

    260

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Time@Peak Reflow Temperature-Max (s):

    30

LED2000PUR Frequently Asked Questions (FAQs)

  • The recommended operating temperature range for the LED2000PUR is -40°C to 125°C.
  • To ensure proper thermal management, it is recommended to attach the LED2000PUR to a heat sink or a metal core PCB, and to use thermal interface material to fill any air gaps.
  • The maximum current rating for the LED2000PUR is 2A, but it is recommended to operate at a maximum of 1.5A to ensure reliability and longevity.
  • Yes, the LED2000PUR is suitable for use in high-humidity environments, but it is recommended to take precautions to prevent moisture ingress, such as using a conformal coating or potting the device.
  • To protect the LED2000PUR from ESD, it is recommended to handle the device in an ESD-controlled environment, use ESD-protective packaging, and ensure that all equipment and tools are properly grounded.
