LED7707 - STMicroelectronics

Description: 6-rows 85 mA LEDs driver with boost regulator for LCD panels backlight, -0.3 to 6,-0.3 to 40 -40 to 150 °C

Download LED7707 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

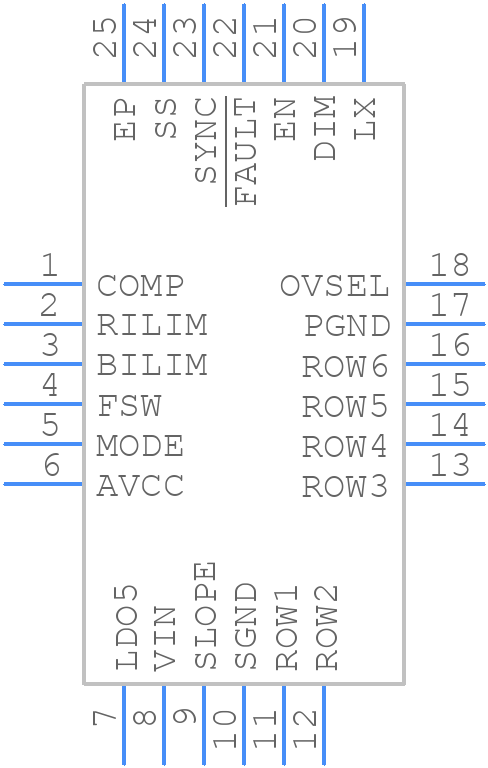

LED7707 - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
LED7707 - STMicroelectronics PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - VFQFPN-24 (4x4mm)
click to zoom
3D Models
LED7707 - STMicroelectronics - 3D model - Quad Flat No-Lead - VFQFPN-24 (4x4mm)
click to zoom

LED7707 Details

  • Manufacturer Part Number:

    LED7707

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    QFN

  • Package Description:

    4 X 4 MM, ROHS COMPLIANT, VFQFPN-2

  • Pin Count:

    2

  • Manufacturer Package Code:

    VFQFPN

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    0

  • Data Input Mode:

    SERIAL

  • Input Characteristics:

    STANDARD

  • Interface IC Type:

    LED DISPLAY DRIVER

  • JESD-30 Code:

    S-PQCC-N24

  • JESD-609 Code:

    e3

  • Length:

    4 mm

  • Moisture Sensitivity Level:

    3

  • Multiplexed Display Capability:

    NO

  • Number of Functions:

    1

  • Number of Segments:

    6

  • Number of Terminals:

    24

  • Operating Temperature-Max:

    85 °C

  • Output Characteristics:

    CONSTANT-CURRENT

  • Output Polarity:

    TRUE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC24,.16SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1 mm

  • Supply Voltage-Max:

    36 V

  • Supply Voltage-Min:

    4.5 V

  • Supply Voltage-Nom:

    12 V

  • Surface Mount:

    YES

  • Temperature Grade:

    OTHER

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    40

  • Width:

    4 mm

  • fmax-Min:

    0.66 MHz

LED7707 Frequently Asked Questions (FAQs)

  • STMicroelectronics provides a recommended PCB layout in the application note AN5153, which includes guidelines for component placement, thermal management, and routing to ensure optimal performance and minimize electromagnetic interference (EMI).
  • The selection of external components such as resistors, capacitors, and inductors depends on the specific application and requirements. STMicroelectronics provides a component selection guide in the application note AN5153, which includes formulas and guidelines for calculating the values of these components.
  • The maximum junction temperature of the LED7707 is 150°C, as specified in the datasheet. However, it's recommended to keep the junction temperature below 125°C to ensure reliable operation and long-term reliability.
  • The LED7707 is designed for low-frequency applications up to 200 kHz. While it may be possible to use it for higher frequencies, the device's performance and efficiency may degrade significantly. For high-frequency applications, it's recommended to use a different device specifically designed for high-frequency operation.
  • The LED7707 does not have built-in overvoltage protection. To implement overvoltage protection, an external voltage supervisor or overvoltage protection circuit can be used to detect and respond to overvoltage conditions. STMicroelectronics provides guidelines for implementing overvoltage protection in the application note AN5153.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LED7707 Overview

Use the download button to access the LED7707 schematic symbol, PCB footprint, and 3D model.
