LEE-29+ - Mini-Circuits

Description: RF Amplifier ML AMPL / SURF MT / RoHS ,50Ω DC to 8 GHz

Download LEE-29+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

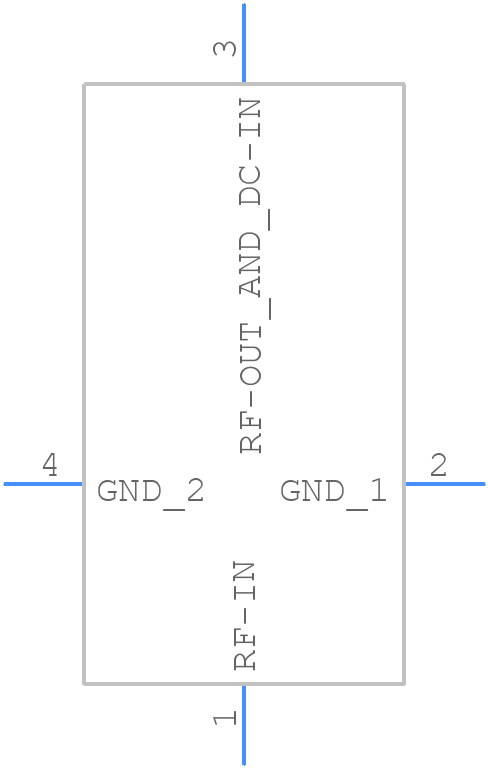

LEE-29+ - Mini-Circuits - PCB symbol
click to zoom
PCB Footprints
LEE-29+ - Mini-Circuits PCB footprint - Other - Other - FG873-2026
click to zoom
3D Models
LEE-29+ - Mini-Circuits - 3D model - Other - FG873-2026
click to zoom

LEE-29+ Details

  • Manufacturer Part Number:

    LEE-29+

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • Manufacturer:

    Mini-Circuits

  • YTEOL:

    6.83

  • Additional Feature:

    USABLE TO 10 GHZ

  • Characteristic Impedance:

    50 Ω

  • Construction:

    COMPONENT

  • Gain:

    13.3 dB

  • Input Power-Max (CW):

    15 dBm

  • JESD-609 Code:

    e3

  • Number of Functions:

    1

  • Number of Terminals:

    4

  • Operating Frequency-Max:

    8000 MHz

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Equivalence Code:

    MODULE,4LEAD(UNSPEC)

  • Power Supplies:

    3.6 V

  • RF/Microwave Device Type:

    WIDE BAND LOW POWER

  • Terminal Finish:

    Matte Tin (Sn)

  • VSWR-Max:

    1.6

LEE-29+ Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. The device should be placed near the edge of the board to minimize signal reflections.
  • The LEE-29+ requires a positive bias voltage (Vcc) of 5V to 15V and a negative bias voltage (Vee) of -5V to -15V. Ensure the bias voltages are well-regulated and decoupled to prevent noise and oscillations.
  • The LEE-29+ can handle input powers up to +20 dBm (100 mW) without damage. However, the maximum input power for optimal performance is +15 dBm (30 mW).
  • To minimize the noise figure, ensure the device is operated at the recommended bias voltage and current. Additionally, use a low-noise voltage regulator and decouple the power supply lines to reduce noise and hum.
  • The recommended operating temperature range for the LEE-29+ is -40°C to +85°C. Operating the device outside this range may affect its performance and reliability.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LEE-29+ Overview

Use the download button to access the LEE-29+ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LEE-2, or try a keyword search, such as RF/Microwave Amplifiers

About Mini-Circuits

Mini-Circuits is a global leader in the design, manufacturing, and distribution of RF and microwave components and systems. The company's product portfolio includes a vast array of components such as amplifiers, mixers, splitters, couplers, filters, switches, and attenuators, among others. These components cover frequency ranges from DC to 65 GHz and beyond, serving applications in wireless communication, satellite communication, radar systems, test and measurement equipment, medical devices, and more.
