The recommended PCB layout for the LESR50-NP involves keeping the current path as short as possible, using a solid ground plane, and placing the device close to the current-carrying conductor to minimize stray inductance.
The LESR50-NP is designed to withstand overcurrent conditions up to 10 times the nominal current rating for a short duration. However, it's essential to implement external overcurrent protection to prevent damage to the device and ensure safe operation.
The thermal derating curve for the LESR50-NP is not explicitly provided in the datasheet. However, as a general guideline, the device's current rating should be derated by 1.5% per degree Celsius above 25°C to ensure reliable operation.
While the LESR50-NP is primarily designed for DC current sensing, it can be used in high-frequency applications up to 100 kHz. However, the device's accuracy and bandwidth may be affected, and additional filtering or signal conditioning may be required.
The LESR50-NP is rated for operation up to 85°C, but it's essential to consider the device's thermal characteristics and ensure proper heat sinking to prevent overheating. For high-temperature applications above 85°C, consult with LEM Holdings SSA or consider alternative devices.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
LESR50-NP Overview

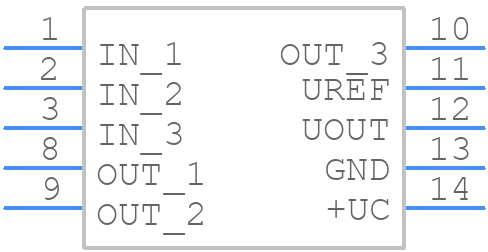

Use the download button to access the LESR50-NP schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LESR5,
or try a keyword search, such as Other Sensors/Transducers
