The recommended PCB layout for the LESR6-NP involves keeping the current path as short as possible, using a solid ground plane, and placing the device close to the current-carrying conductor. Additionally, it's recommended to use a Kelvin connection for the sense lines to minimize errors.
The LESR6-NP has an internal overcurrent detection circuit that triggers an open-drain output when the current exceeds the specified threshold. This output can be connected to a microcontroller or other logic circuit to initiate a shutdown or alarm in the event of an overcurrent condition.
The typical response time of the LESR6-NP to changes in current is around 1-2 microseconds, making it suitable for high-speed current sensing applications.
Yes, the LESR6-NP is rated for operation up to 125°C, making it suitable for use in high-temperature environments. However, the device's accuracy and linearity may be affected at extreme temperatures, so it's essential to consult the datasheet and application notes for specific guidance.
The LESR6-NP has a shielded design and is constructed with EMI-resistant materials to minimize the effects of electromagnetic interference. Additionally, the device's differential output helps to reject common-mode noise and improve immunity to EMI.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
LESR6-NP Overview

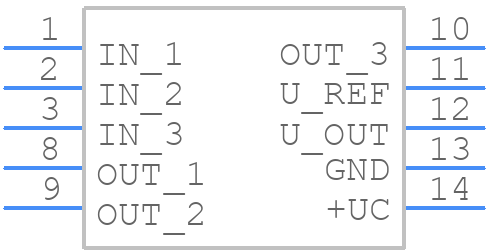

Use the download button to access the LESR6-NP schematic symbol, PCB footprint, and 3D model.
