LF13WBRB-20SD - Hirose

Description: 20 Position Circular Connector Receptacle, Female Sockets Solder

Download LF13WBRB-20SD Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
LF13WBRB-20SD - Hirose - PCB symbol
click to zoom
PCB Footprints

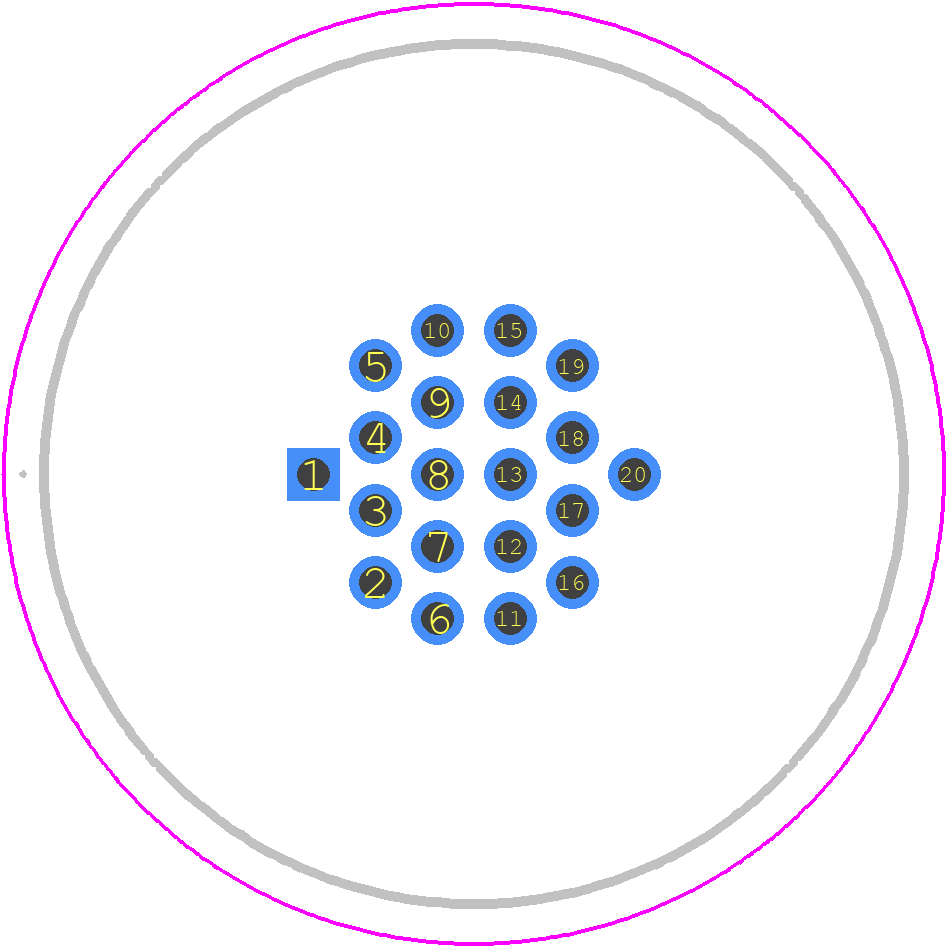

LF13WBRB-20SD - Hirose PCB footprint - Other - Other - LF13WBRB-20SD-1
click to zoom
3D Models
LF13WBRB-20SD - Hirose - 3D model - Other - LF13WBRB-20SD-1
click to zoom

LF13WBRB-20SD Details

  • Manufacturer Part Number:

    LF13WBRB-20SD

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.20

  • Factory Lead Time:

    12 Weeks

  • Manufacturer:

    Hirose Electric Co Ltd

  • YTEOL:

    8

  • Connector Type:

    CIRCULAR CONNECTOR

LF13WBRB-20SD Frequently Asked Questions (FAQs)

  • The recommended torque for the screw terminals is 0.5 N·m to 1.5 N·m (0.37 lbf·in to 1.06 lbf·in).
  • Yes, the LF13WBRB-20SD is designed to withstand vibrations up to 10 Hz to 2000 Hz, 10 G acceleration.
  • Yes, the LF13WBRB-20SD has a waterproof rating of IP67, making it suitable for outdoor use in harsh environments.
  • The operating temperature range of the LF13WBRB-20SD is -40°C to 105°C (-40°F to 221°F).
  • Yes, the LF13WBRB-20SD is designed to operate in humid environments, with a humidity rating of 90% RH to 95% RH.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LF13WBRB-20SD Overview

Use the download button to access the LF13WBRB-20SD schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LF13W, or try a keyword search, such as Other Circular Connectors
