LF2113BTR - LITTELFUSE

Description: Gate Drivers HI LO Side DRVR 600V 2A SOIC-16

Download LF2113BTR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

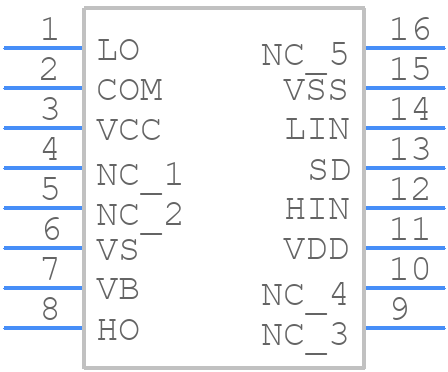

LF2113BTR - LITTELFUSE - PCB symbol
click to zoom
PCB Footprints
LF2113BTR - LITTELFUSE PCB footprint - Small Outline Packages - Small Outline Packages - SOIC-16
click to zoom
3D Models
LF2113BTR - LITTELFUSE - 3D model - Small Outline Packages - SOIC-16
click to zoom

LF2113BTR Details

  • Manufacturer Part Number:

    LF2113BTR

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Littelfuse Inc

  • YTEOL:

    8.4

  • High Side Driver:

    YES

  • Interface IC Type:

    HALF BRIDGE BASED IGBT/MOSFET DRIVER

  • JESD-30 Code:

    R-PDSO-G16

  • Length:

    10.287 mm

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Peak Current Limit-Nom:

    2.5 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP16,.4

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Seated Height-Max:

    2.6416 mm

  • Supply Voltage-Max:

    20 V

  • Supply Voltage-Min:

    3 V

  • Supply Voltage-Nom:

    15 V

  • Surface Mount:

    YES

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Turn-off Time:

    0.125 µs

  • Turn-on Time:

    0.15 µs

  • Width:

    7.5184 mm

LF2113BTR Frequently Asked Questions (FAQs)

  • A good PCB layout for the LF2113BTR should ensure that the input and output pins are separated as much as possible to minimize noise coupling. Additionally, the PCB should have a solid ground plane and use short, wide traces for the input and output lines to reduce inductance and resistance.
  • To select the correct fuse value, consider the maximum current rating of the LF2113BTR (1.5A) and the maximum current required by your load. Choose a fuse value that is slightly higher than the maximum current required by your load to ensure reliable operation.
  • The LF2113BTR has an operating temperature range of -40°C to 85°C. However, it's essential to note that the device's performance may degrade at higher temperatures, and the fuse may blow more easily.
  • The LF2113BTR is rated for a maximum voltage of 24V. Using it in a high-voltage application may exceed its voltage rating and lead to device failure or damage. It's recommended to use a voltage regulator or other protection circuitry to ensure the input voltage remains within the rated range.
  • To troubleshoot issues with the LF2113BTR, start by checking the input voltage and current, ensuring they are within the rated range. Verify that the PCB layout is correct, and the device is properly soldered. Check for any signs of overheating, and ensure that the device is not exposed to excessive moisture or humidity.
