Littelfuse recommends a thermal pad layout with a minimum of 2 oz copper thickness, and a thermal relief pattern to ensure good heat dissipation. A minimum of 1 inch x 1 inch copper area is recommended around the device for optimal thermal performance.
Littelfuse recommends using a soldering iron with a temperature range of 250°C to 260°C, and a solder with a melting point of 180°C to 190°C. The device should be soldered within 3 seconds to 5 seconds, and the solder joints should be inspected for proper wetting and filleting.
The LF2184NTR has a maximum surge current rating of 100 A for 8.3 ms, as per the IEC 61000-4-5 standard. This rating is based on the device's ability to withstand high current surges without damage or degradation.
While the LF2184NTR is primarily designed for low-frequency applications, it can be used in high-frequency applications up to 100 kHz. However, the device's performance and characteristics may vary at higher frequencies, and additional testing and validation may be required.
The LF2184NTR is designed to withstand overvoltage conditions up to 1.5 times the maximum rated voltage. In the event of an overvoltage condition, the device will clamp the voltage to prevent damage to the internal components. However, prolonged exposure to overvoltage conditions may affect the device's reliability and lifespan.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
LF2184NTR Overview

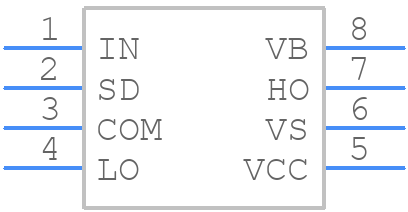

Use the download button to access the LF2184NTR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LF218,
or try a keyword search, such as MOSFET Drivers
