A recommended PCB layout for optimal thermal performance would be to use a large copper pad under the device, connected to a solid ground plane, and to use thermal vias to dissipate heat. Additionally, keeping the PCB layer stack-up symmetrical and using a thermal interface material (TIM) between the device and the heat sink can improve thermal performance.
To ensure reliable operation in high-temperature environments, it's essential to follow the recommended derating curves, ensure proper heat sinking, and consider using a thermal interface material (TIM) to improve heat transfer. Additionally, selecting components with a high temperature rating and using a robust PCB design can help ensure reliable operation.
Exceeding the maximum junction temperature (Tj) rating can lead to a reduction in the device's lifespan, increased thermal resistance, and potentially even device failure. It's essential to ensure that the device operates within the recommended temperature range to maintain reliability and performance.
While the LF2388BTR is a high-quality device, it's essential to evaluate its suitability for high-reliability or automotive applications. Littelfuse Inc may offer specific devices or variants that are designed for these applications, which may have additional testing, validation, and certification. It's recommended to consult with Littelfuse Inc or a qualified engineer to determine the device's suitability for these applications.
To handle ESD protection during handling and assembly, it's essential to follow proper ESD handling procedures, such as using ESD-safe workstations, wrist straps, and packaging materials. Additionally, ensuring that the device is properly grounded during assembly and using ESD-protective devices or components can help prevent ESD damage.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
LF2388BTR Overview

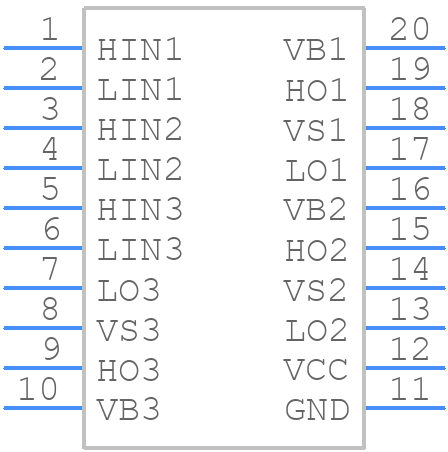

Use the download button to access the LF2388BTR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LF238,
or try a keyword search, such as MOSFET Drivers
