LF356N footprint, schematic symbol and 3D model by STMicroelectronics

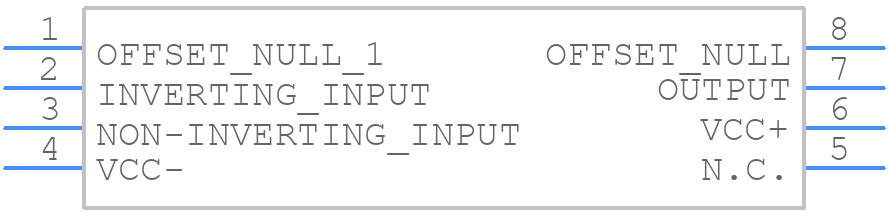

Symbol

click to zoom

PCB Footprints

LF356N - STMicroelectronics PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - DIP8_(0.66BW)_1

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for LF356N
Part Number LF356N
Manufacturer STMicroelectronics
Pin Count 8
Part Category Integrated Circuit
Package Category Dual-In-Line Packages
Footprint Name Dual-In-Line Packages - DIP8_(0.66BW)_1
Released Date Jun 3, 2026
Last Modified Date Jun 3, 2026 9:33 AM UTC
Pinout / Pin List Click Here (Member Only)

LF356N Details

Manufacturer Part Number:
LF356N
Part Life Cycle Code:
Obsolete
Part Package Code:
DIP
Package Description:
PLASTIC, DIP-8
Pin Count:
8
ECCN Code:
EAR99
HTS Code:
8542.33.00.01
Manufacturer:
STMicroelectronics
YTEOL:
0
Amplifier Type:
OPERATIONAL AMPLIFIER
Architecture:
VOLTAGE-FEEDBACK
Average Bias Current-Max (IIB):
0.008 µA
Bias Current-Max (IIB) @25C:
0.0002 µA
Common-mode Reject Ratio-Min:
80 dB
Common-mode Reject Ratio-Nom:
100 dB
Frequency Compensation:
YES
Input Offset Voltage-Max:
13000 µV
JESD-30 Code:
R-PDIP-T8
JESD-609 Code:
e0
Length:
9.8 mm
Low-Bias:
YES
Low-Offset:
NO
Micropower:
NO
Neg Supply Voltage Limit-Max:
-18 V
Neg Supply Voltage-Nom (Vsup):
-15 V
Number of Functions:
8
Number of Terminals:
1
Operating Temperature-Max:
70 °C
Package Body Material:
PLASTIC/EPOXY
Package Code:
DIP
Package Equivalence Code:
DIP8,.3
Package Shape:
RECTANGULAR
Package Style:
IN-LINE
Power:
NO
Programmable Power:
NO
Qualification Status:
Not Qualified
Seated Height-Max:
5.08 mm
Slew Rate-Nom:
12 V/us
Supply Current-Max:
10 mA
Supply Voltage Limit-Max:
18 V
Supply Voltage-Nom (Vsup):
15 V
Surface Mount:
NO
Technology:
BIPOLAR
Temperature Grade:
COMMERCIAL
Terminal Finish:
TIN LEAD
Terminal Form:
THROUGH-HOLE
Terminal Pitch:
2.54 mm
Terminal Position:
DUAL
Unity Gain BW-Nom:
5000
Voltage Gain-Min:
15000
Wideband:
NO
Width:
7.62 mm

LF356N Frequently Asked Questions (FAQs)

The maximum power dissipation of the LF356N is dependent on the package type and ambient temperature. For the DIP8 package, the maximum power dissipation is 670mW at 25°C. For the SO8 package, it is 500mW at 25°C. It is essential to ensure that the device does not exceed these limits to prevent overheating and potential damage.
To ensure stability in a unity-gain configuration, it is recommended to add a capacitor (typically 10-100pF) between the output and the inverting input pins. This capacitor helps to compensate for the internal pole of the op-amp and prevents oscillations.
The recommended input impedance for the LF356N is greater than 1kΩ. This is to ensure that the input bias current does not significantly affect the operation of the op-amp. Lower input impedances can lead to increased input offset voltage and reduced common-mode rejection ratio.
While the LF356N can be used as a comparator, it is not recommended due to its relatively slow slew rate (0.5V/μs) and limited output current drive capability (±20mA). A dedicated comparator IC would be a better choice for most applications.
The LF356N has internal ESD protection diodes, but it is still recommended to take precautions when handling the device. Use an anti-static wrist strap or mat, and ensure that the device is stored in an anti-static bag or tube. Avoid touching the pins or exposing the device to electrostatic discharges.

Trust Checks

Community Provided

System Verified

Community Approved

LF356N Overview

Use the download button to access the LF356N schematic symbol and PCB footprint.

To find more CAD model downloads similar to this part, try a partial part number search, like LF356, or try a keyword search, such as Operational Amplifiers

About STMicroelectronics

STMicroelectronics (ST) is a global semiconductor company that designs, manufactures, and markets a broad range of integrated circuits (ICs), discrete devices, and other electronic components. STMicroelectronics offers a diverse portfolio of semiconductor products covering a wide range of applications and industries. Their product categories include microcontrollers, analog and mixed-signal ICs, MEMS (Micro-Electro-Mechanical Systems) sensors, power management ICs, RF (Radio Frequency) transceivers, aut
