LF398S8#TRPBF - Analog Devices

Description: Precision Sample and Hold Amplifier in SO8 Package

Download LF398S8#TRPBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

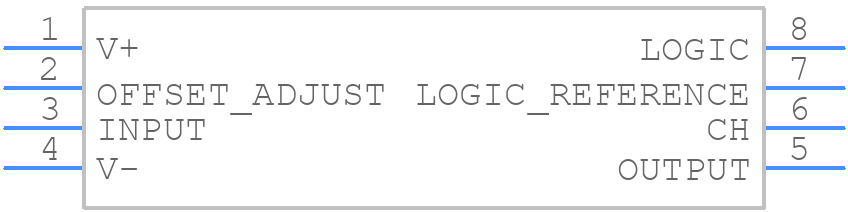

LF398S8#TRPBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LF398S8#TRPBF - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - S8 Package 8-Lead Plastic Small Outline (Narrow .150 Inch) (Reference LTC DWG # 05-08-1610 Rev G)
click to zoom
3D Models
LF398S8#TRPBF - Analog Devices - 3D model - Small Outline Packages - S8 Package 8-Lead Plastic Small Outline (Narrow .150 Inch) (Reference LTC DWG # 05-08-1610 Rev G)
click to zoom

LF398S8#TRPBF Details

  • Manufacturer Part Number:

    LF398S8#TRPBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    PLASTIC, SO-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    05-08-1610 (S8)

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Acquisition Time-Nom:

    16 µs

  • Amplifier Type:

    SAMPLE AND HOLD CIRCUIT

  • Analog Input Voltage-Max:

    11.5 V

  • Analog Input Voltage-Min:

    -11.5 V

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    4.9025 mm

  • Moisture Sensitivity Level:

    1

  • Neg Supply Voltage Limit-Max:

    -18 V

  • Neg Supply Voltage-Nom (Vsup):

    -15 V

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    70 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Packing Method:

    TR

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Sample and Hold / Track and Hold:

    SAMPLE

  • Seated Height-Max:

    1.752 mm

  • Supply Current-Max:

    6.5 mA

  • Supply Voltage Limit-Max:

    18 V

  • Supply Voltage-Nom (Vsup):

    15 V

  • Surface Mount:

    YES

  • Technology:

    BIPOLAR

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.899 mm

LF398S8#TRPBF Frequently Asked Questions (FAQs)

  • A good PCB layout for the LF398S8 involves keeping the input and output traces short and separate, using a solid ground plane, and placing decoupling capacitors close to the device. A 4-layer PCB with a dedicated analog ground plane is recommended.
  • To ensure stability, make sure to follow the recommended compensation capacitor values and placement, keep the input and output impedance low, and avoid parasitic capacitance and inductance in the circuit. Also, ensure the device is operated within its recommended operating conditions.
  • The maximum power dissipation of the LF398S8 is dependent on the package type and ambient temperature. For the S8 package, the maximum power dissipation is 1.4W at 25°C ambient temperature. However, it's recommended to derate the power dissipation based on the ambient temperature and desired reliability.
  • While the LF398S8 can be used as a voltage regulator, it's not recommended due to its limited current output capability and lack of built-in overcurrent protection. Instead, consider using a dedicated voltage regulator IC designed for the specific application.
  • To protect the LF398S8 from ESD and overvoltage, use ESD protection diodes and TVS diodes at the input and output pins. Also, ensure the device is operated within its recommended operating conditions and avoid exceeding the maximum ratings.
